Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 405

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 405

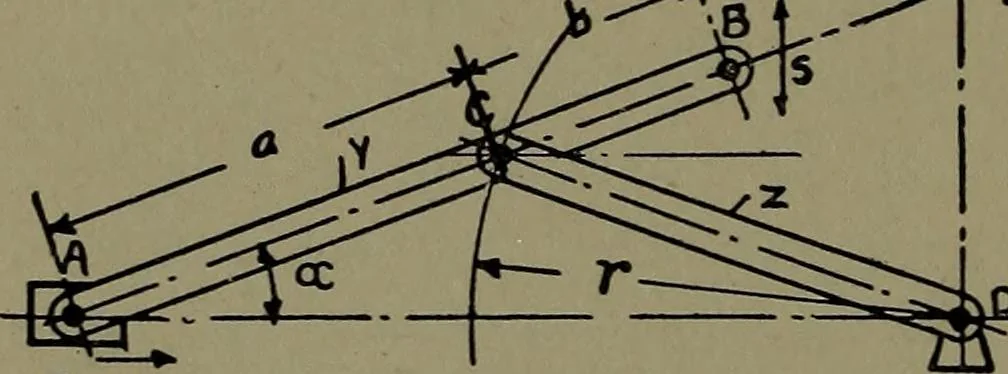

1653. STRAIGHT LINE MOTION WITH ONE^P LEVER AND A SLIDINGI LINK.—Lever Z is connect-ed to a sliding link Y. Z ispivoted at D and connected toj2 link Y 3.1 C. F is a link con-nected to Z at C and to asliding block at A, the other end of which is at B, and moves ina straight line as at 6^. … STRAIGHT LINE MOTION WITH ONE LEVER AND A SLIDINGLINK.—Lever F is connected4^ to a sliding link Z. F is pivot-ed at D and connected to Z atC. Z is connected to F at Cto a sliding guide at A, and the end B moves in a straight line.

Mechanical movements
