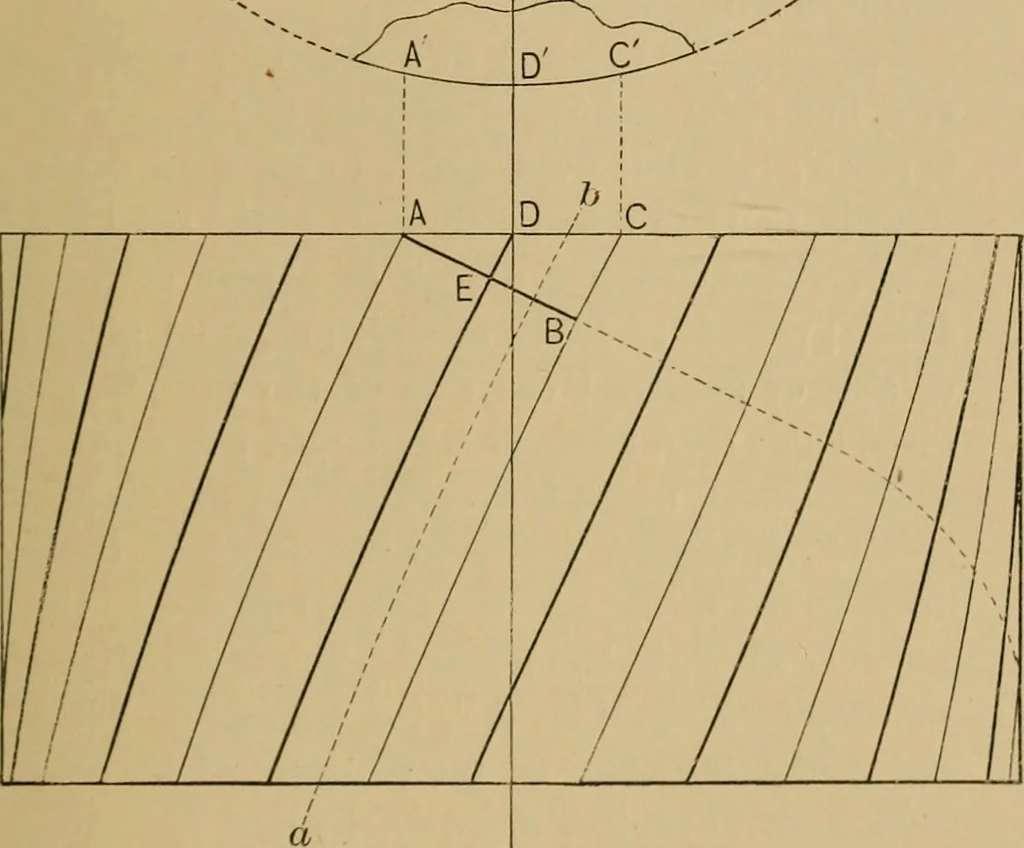

space. Now, to make this space D C, the path of cut-ting is along the dotted line a h. By mere inspection,we can see that the shortest distance between twoteeth along the pitch surface is not the distanceADC. Let the line A E B be perpendicular to the sides ofteeth upon the pitch surface. A… … IPiiT, .a.5 102 BROWN & SHARPE MFG. C!0. Normal Pitch. The Normal Fitch of a spiral gear is then: Theshortest distance between the ce7iters of two consecutiveteeth measured along the pitch surface. In spur gears the normal pitch and circular pitchare alike. In the rack D D, Fig. 40, the linear…
