A practical treatise on weaving by hand and power looms : intended as a text book for manufacturers by hand and power looms, and power loom engineers ... (1846)
White, George · Glasgow : John Niven ; New York : D. Appleton & Co. · leaf 119

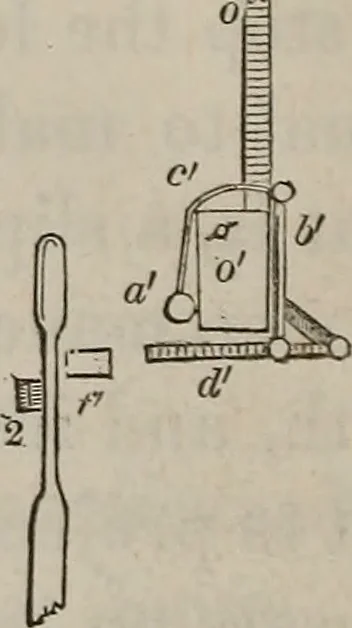

loom was to be stop-ped, the pulley was slipped off the feathered part ofthe shaft, and thus, although it might continue torevolve with the power, it had no effect on themachine. 176. This slipping of the pulley off the feather,is effected by a spring, e Fig. 36th, and the objectin the action of… … 108 PRACTICAL TREATISE 177. The manner in which the protector effectsthis action on the spring e, will be apparent fromFig. 40th, when it is observed that this figure is anend view of the protector, representing its connex-ion with the lathe, as fitted for acting on thespring. One arm only, c,…
Weaving
Internet Archive · Clark Art Institute Library · Public Domain Mark 1.0. Free to use for anything.
