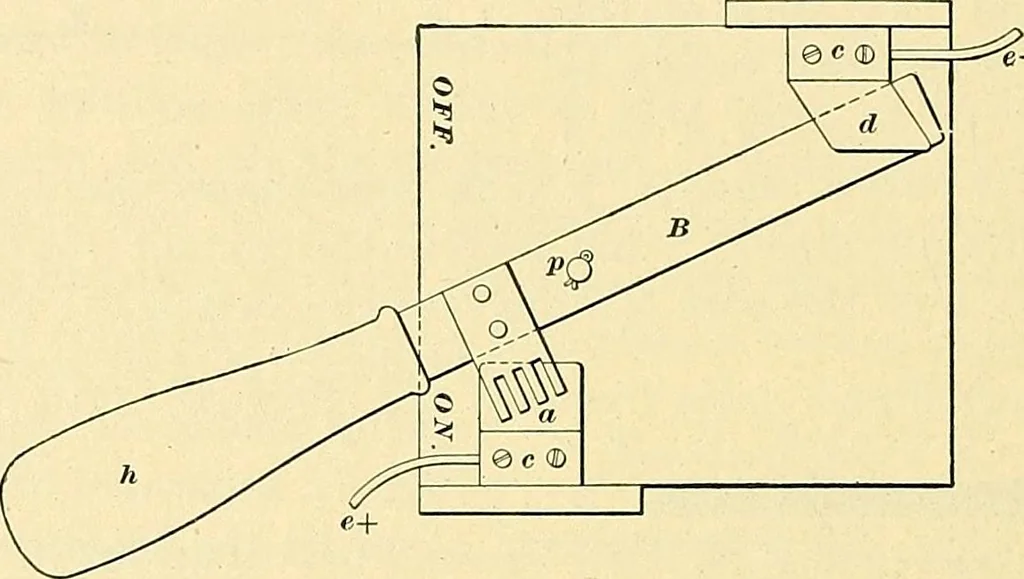

his switch is readily exposed to view by removing the four 12 ELECTRIC RAILWAYS. 25 corner screws a, a, a, a that secure the fiber top piece f.The fiber corner pieces c, c prevent the flasli licking out anddisfiguring the car roof, should the switch get a little out oforder. This switch is provided… … Fig. 17. the switch mountings appear when the fiber top f is removed.B is the switch blade provided with handle Ji, working arounda center/; r, c are brass castings-provided with holes toreceive wires ^+ and r—, and also provided with springblades «, d^ into which the switch blade presses when…
