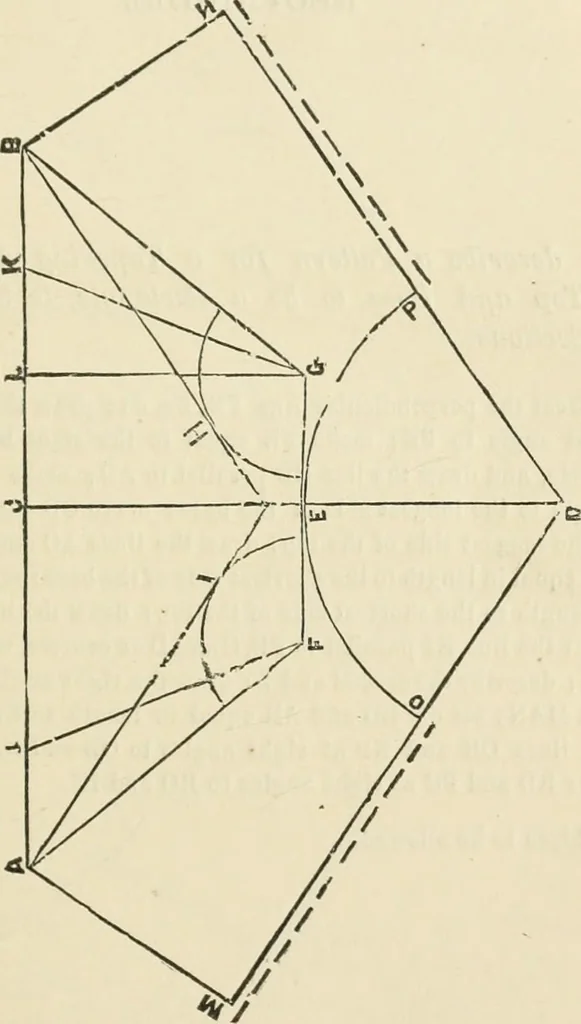

al in length to one-fourth the circumference of the top; draw the lines AF andBG ; make CK equal to one-half the shortest side of the base ;erect the line LG parallel to EC, F and G as centres, with theradii KL. Describe the arcs I and H; draw the right angle linesHBN and lAM; set off BN and AM… … 36 PRACTICAL RULES. KEOTANGLB. To describe a Pattern for a Tapering Article, theTop and Base to he a Rectangle, to he in TwoSections. Erect the perpendicular line FE, fig. 34 ; draw the line AB atright angle to FE; make FE equal to the slant height of thearticle, and draw the line CD parallel to…
