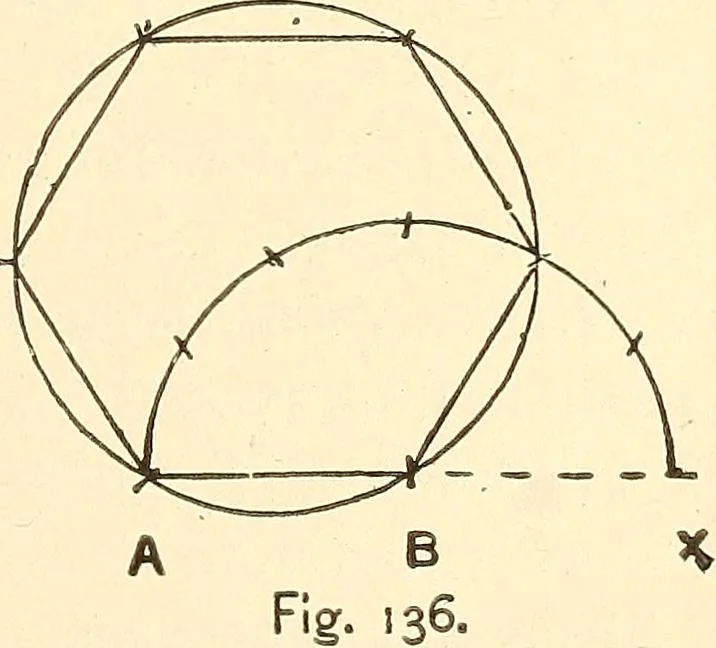

Fig- 35- … 104 TIN, SHEETJROX AND COPPER-PLATE WORKER. Divide the semicircle thus formed into as many equal partsas the figure is to have sides (six), and join B to the seconddivision point of the semicircle, counting from X. Thisline will be another side of the required polygon. Havingnow three points. A, B,…
