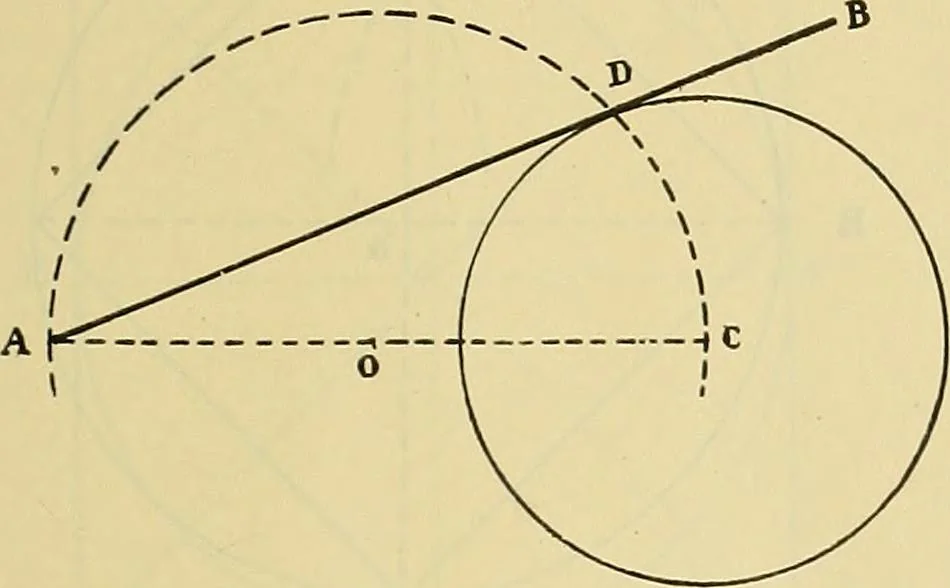

ig. 188. To draw a tangent to a circle, passing through agiven point on the circumference. (See definition,page 34.) Let A be the given point on the given circum-ference, Fig. 188. From A to the center O of the circle, draw theradius AO. Through A draw the line BC perpen-dicular to AO. The line BC… … Fin. 1X9. Join AC and bisect it at O. From O as center,with a radius equal to OC or OA describe a semi-circle, cutting the given circle at D. The requiredtangent is a line passing through A and D. To draw lines tangent to two given circles. Case I.—From O, the center of the larger circle,Fig. 190,…
