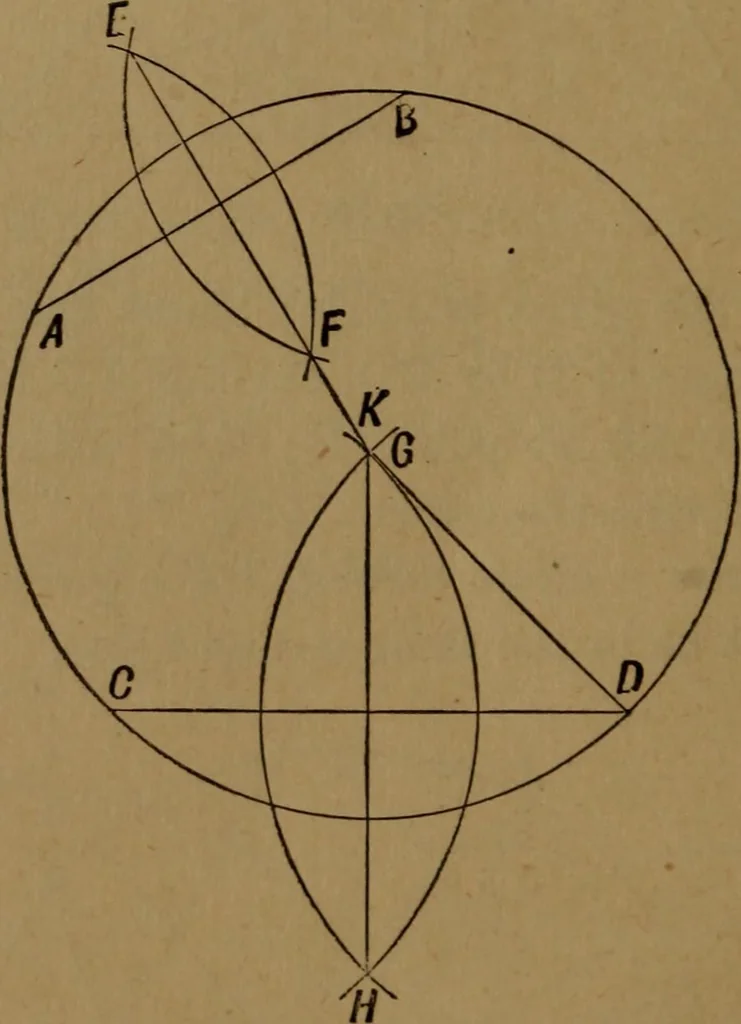

ven points; join them to form a tri-angle; with centre A, and distance greater than half of AC,describe an arc; with centre C and same distance, describe anarc to cut former; join points of section of arcs; this line willpass through the centre of the circle; draw similar arcs onAB, and join points… … Fig. 78. Let BACD be a circle or arc; draw any two chords AB,CD, and draw arcs EF and GH, bisecting the chords, respec-tively; join EF and HG and produce them to meet in K;then K will be the centre, and if K and D be joined, KDwill be a radius, and a circle may be thus described with itwith the…
