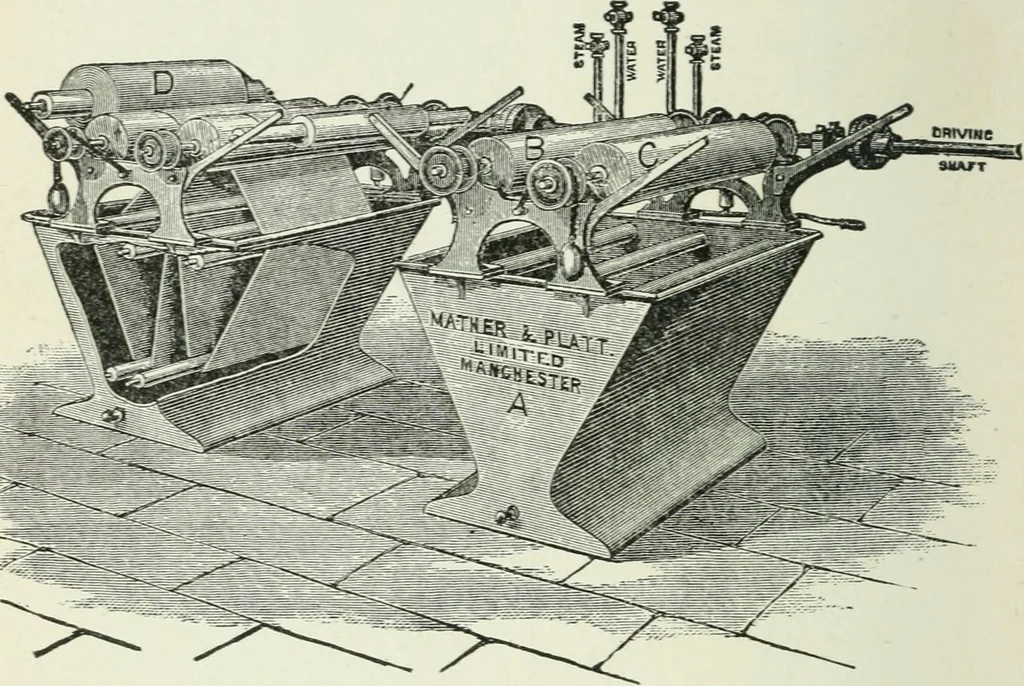

oden orcast-iron vat (^), over which a wince, or skeleton roller L 146 PRINXIPLES OF DYEING {B), is supported. The vat is divided by a perforated dia-phragm, which is open below, in order to allow the piecesto pass freely beneath it. The pieces, stitched together inthe form of endless bands, are… … Fig. 17. —Jiggers. The y^^, or jigger (Fig. 17), consists of a dve-vat (A)larger at the top than at the bottom, containing three guiderollers. The cloth is wound on a roller {B), passed overthe guide rollers in the vat, on to a second roller {C).When the machine is set in motion, the cloth is…
