Fraps, George Stronach, 1876- · New York Macmillan · leaf 164

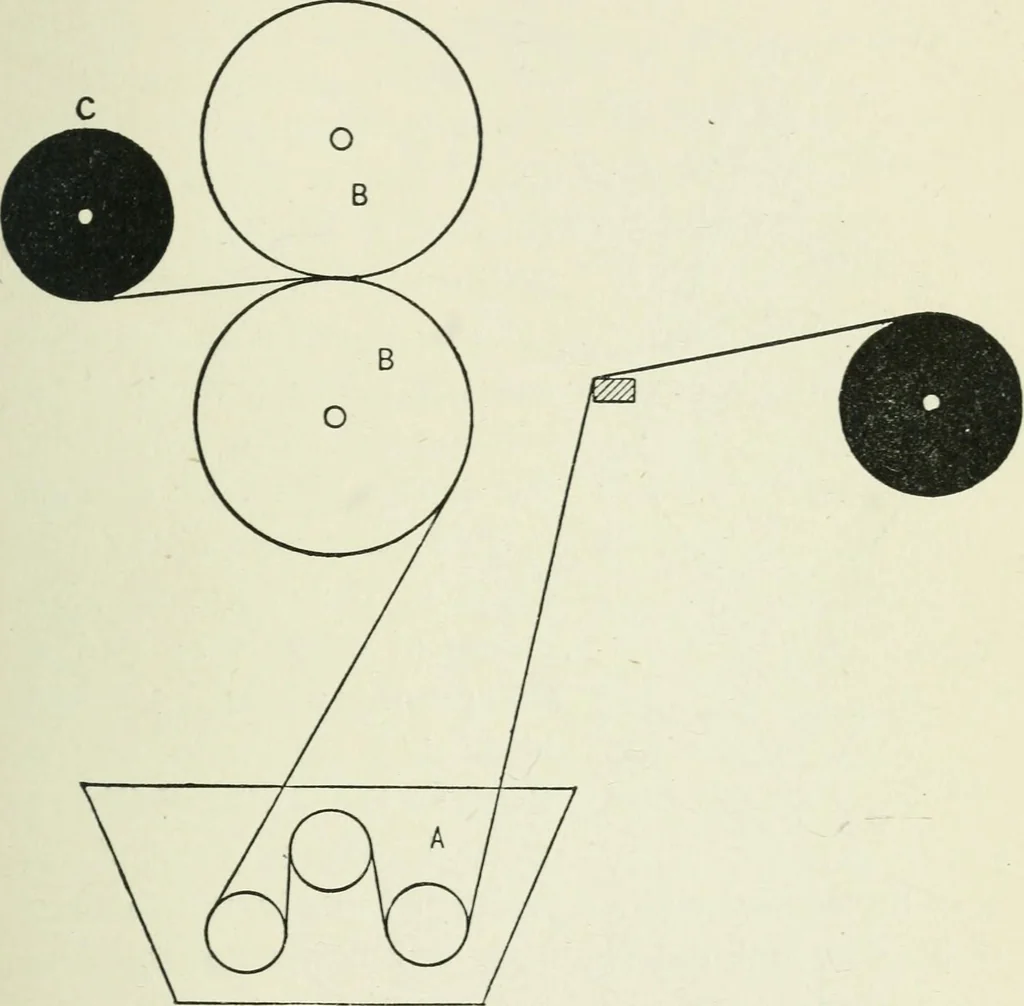

{C).When the machine is set in motion, the cloth is woundfrom the first to the second roller. The direction is thenreversed, and the cloth w^ound back again, and so on aslong as may be necessary. When the dyeing is finished, DYEING MACHINERY AND MANIPULATIONS 147 the cloth is wound on a third… … Fig. 18. — Padding machine. ThQ padding machine (Fig. 18) is used chiefly for dyeinglight colors on cotton cloth. The cloth passes through thethickened dye Hquor contained in the vat {A), then betweensqueeze rollers (B), and on to a second roller {C). Theoperation is then finished. The operation…
Dyes and dyeing
