The principles of pattern making, written specially for apprentices and students in technical schools (1900)
Horner, Joseph Gregory, 1847-1927 · London, New York, Pitman · leaf 29

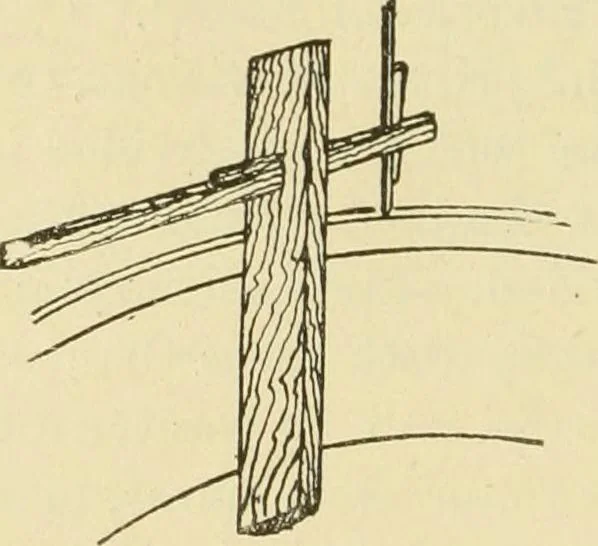

) 18 PRINCIPLES OF PATTERN MAKING. bench marking gauges, made by the workmen, areessential. Cutting, and mortice gauges, are not wanted,but a long toothed gauge (Fig. 3), also made by theworkman, is necessary for sweeped work, and for mark-ing lines on faces upon different planes. Either the flator… … Fig. 3. Long-toothed Gauge. lines, end lines, and working lines generally upontimber, as guides for cutting and planing by. Pencillines are never used for such purposes, being neitheraccurate enough, nor permanent. The straightedge,and winding strips are employed for testing the ac-curacy of stuff…
Patternmaking
