The principles of pattern making, written specially for apprentices and students in technical schools (1900)
Horner, Joseph Gregory, 1847-1927 · London, New York, Pitman · leaf 81

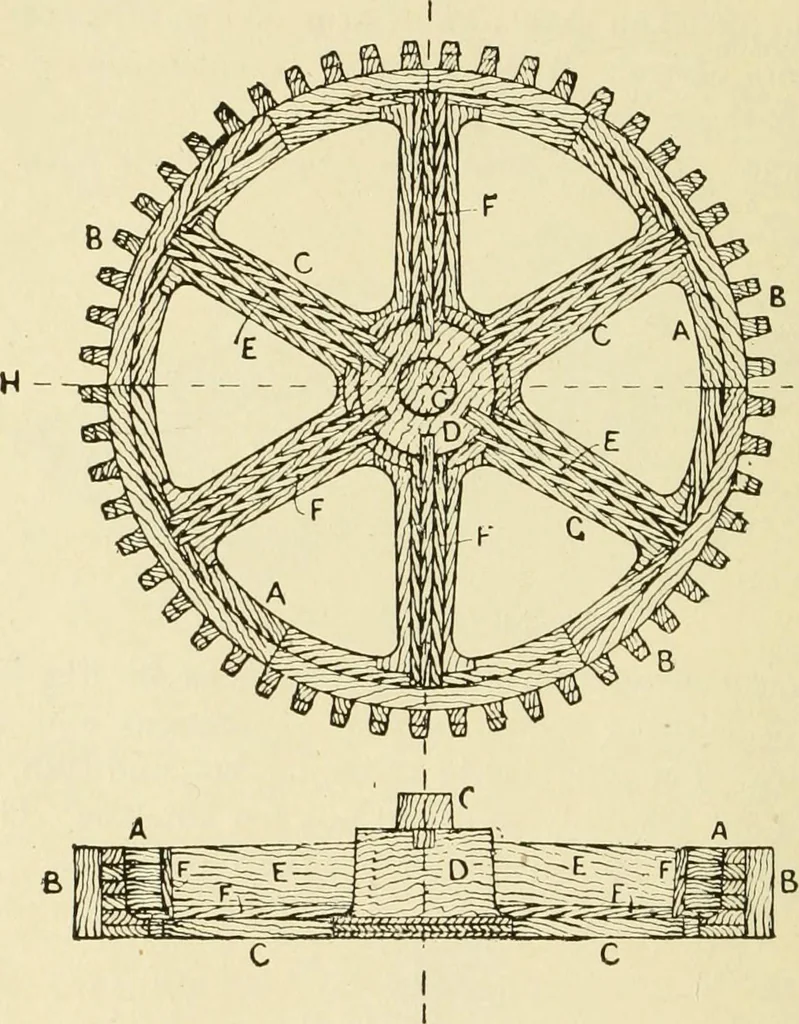

Fig. 55. Peg for Segments.further security the joints should be pegged : Fig. 55 ?o PRINCIPLES OF PATTERN MAKING. showing a view of a peg securing segment A to seg-ments B and C. Fig. 56 shows a spur wheel pattern, from which the … Fig. 56. Pattern for Spur Wheel. general construction of built up work is apparent. Thesection of the rim A is usually turned to templets,made directly from the drawing board, on which the GEAR WHEELS—PATTERNS. ?1 wheel is properly struck out to full size. The arms Care made to possess the maximum…
Patternmaking
