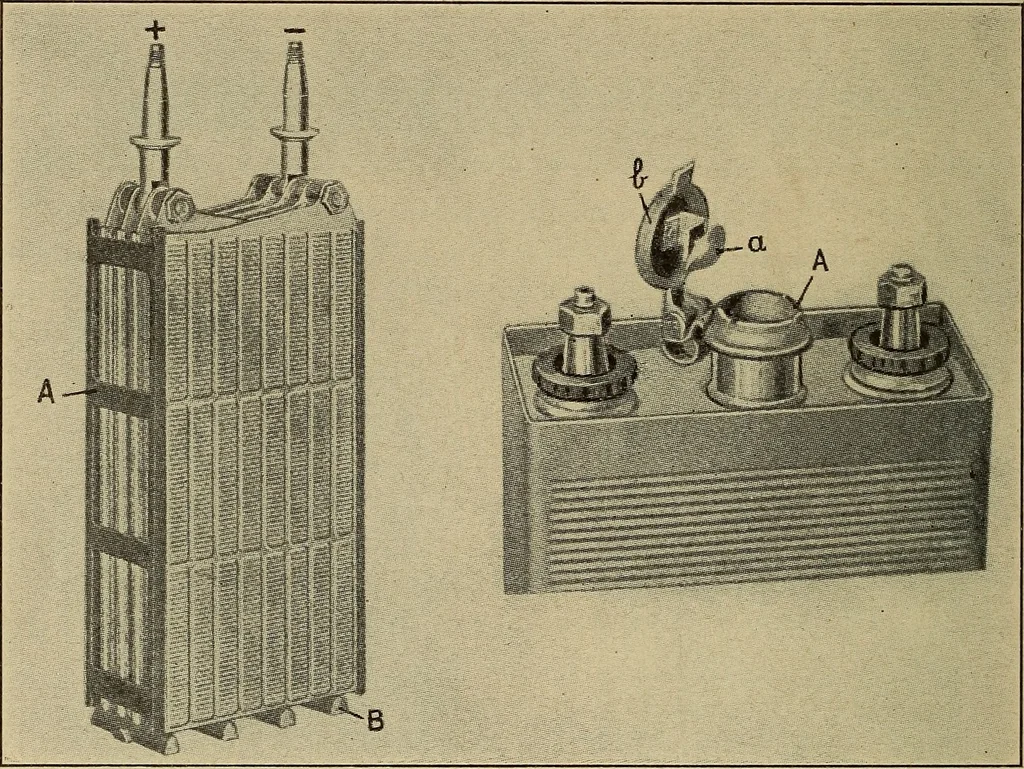

the tank after the plateshave been put in place. This cover carries two terminals, aswell as a combined gas vent and filling aperture A. When thecover b is closed, the hemispherical valve a closes the apertureand prevents the escape of electrolyte, but allows the gasesgenerated on overcharge to… … Fig. 174.—Plate groups of anEdison cell. Fig. 175.—Top of the jar of an Edi-son cell. added. No corrosive fumes are given off from this electrolyteso that no special care need be taken in mounting the cells. 189. The Voltage of an Edison Battery.—Fig. 176 shows howthe voltage of an Edison battery…
