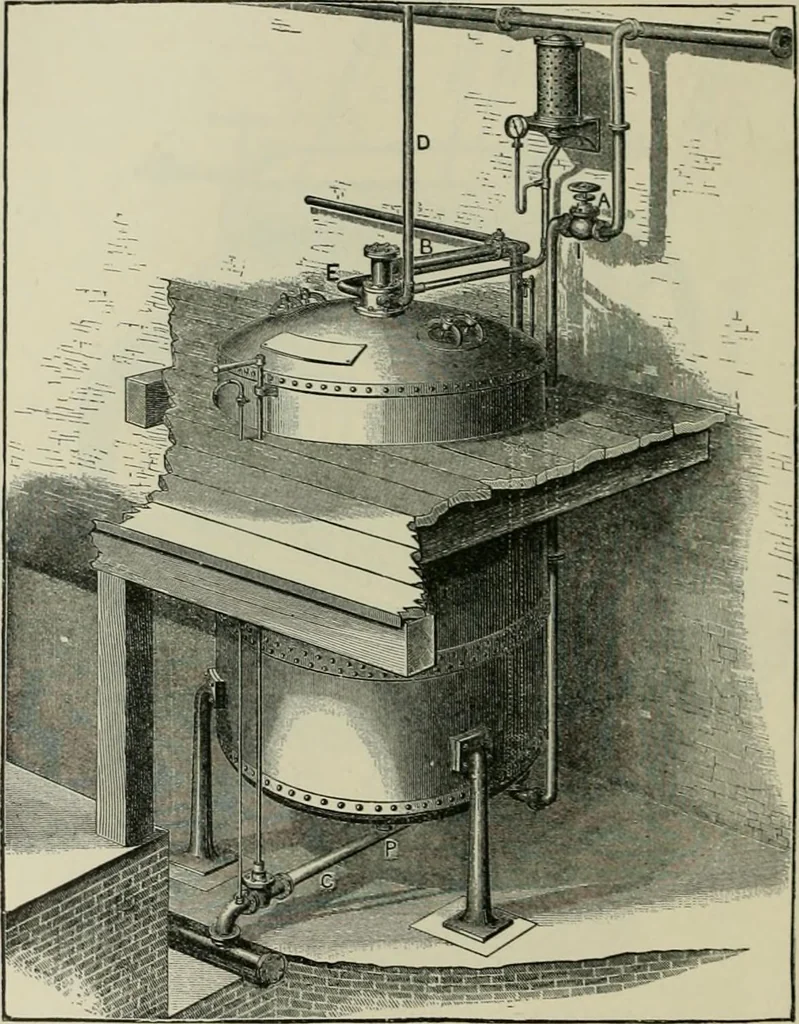

bottom of one into the top of 92 TEXTILE PRINTING. the other. When all the liquor has passed over, the steam pressure is reversed,and the alternate action takes place, the liquor passing hack into the first kier.In this way two kiers Full of cloth are treated with one kierful of liquor, sothat a… … Fig. 44.—Injector kier (Mather & Piatt). Low pressure and open kiers are also used in some works, but they are nowalmost obsolete. Whatever form of kier is employed, the cloth must be plaited down in itin a certain way, so as to be well packed, but at the same time not too tightlyas to impede…
