The principles and practice of textile printing (1912)
Knecht, Edmund, 1861-1925, Fothergill, James Best · London : Charles Griffin · leaf 72

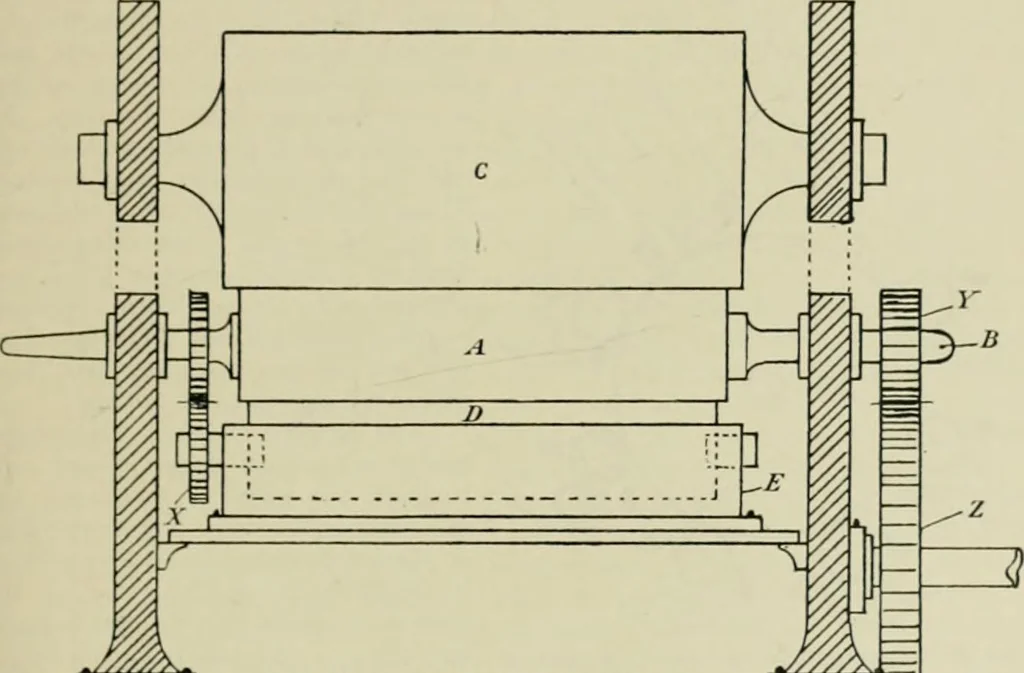

sure upon the revolving printing roller (A). This pressure is usually obtained, in a single-colour machine, from a system of weighted o pound levers, at the end of which the cylinder is mounted in adjustable bearings, carried in massive slotted heads, and capable ofbeing raised or lowered,… … / // / T77TT7~T77777? />//////>///\ ■ {/// FlG. 25.—Diagrammatic section of a single-colour roller machine. (Doctors not shown.) when a seam at a piece-end passes through the machine. In some pat terns ofsingle-colour machines the reverse arrangement is adopted, ami instead of thecylinder…
Textile printing
