The principles and practice of textile printing (1912)
Knecht, Edmund, 1861-1925 · London : C. Griffin & Co. · leaf 99

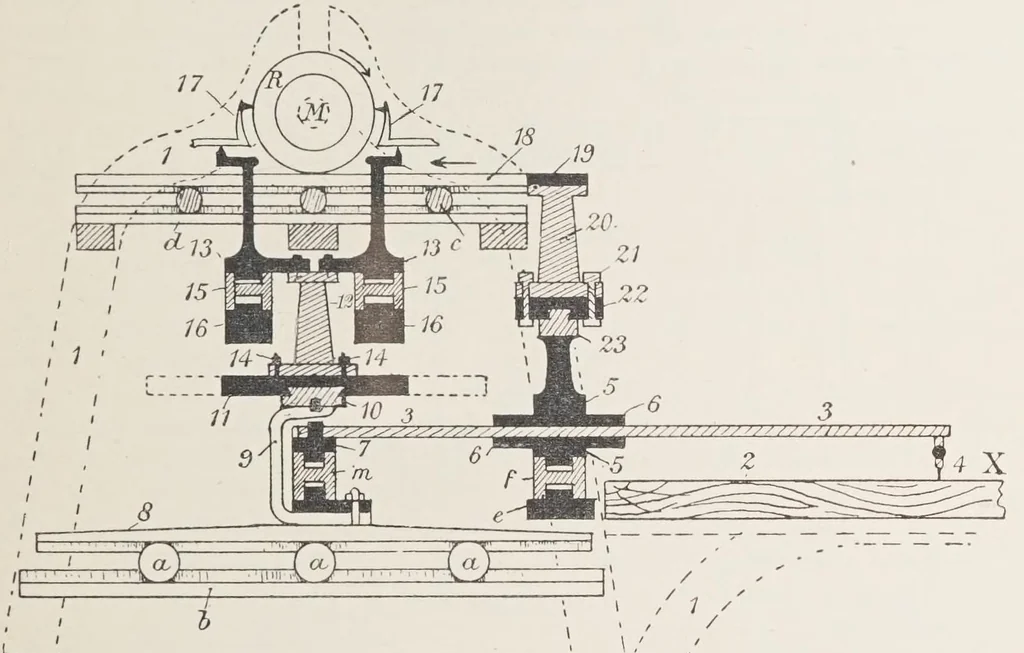

with a tracing point for going over the design, and the inclined movable levers are connected with diamond points which bear on the varnished roller and cut a reduced replica of the design thereon through the film of varnish, thus laying bare the copper in readiness for the etching bath. Figs. 34… … Fic. 34.—Section of the flat-table pentagraph, The parts are numbered and lettered as follows :—(1) is the framework of the machine, to which the various fixed rails and bars are attached ; (2) the table upon which the design to be transferred to the roller R is laid ; (3) the tracer- rod, carrying…
