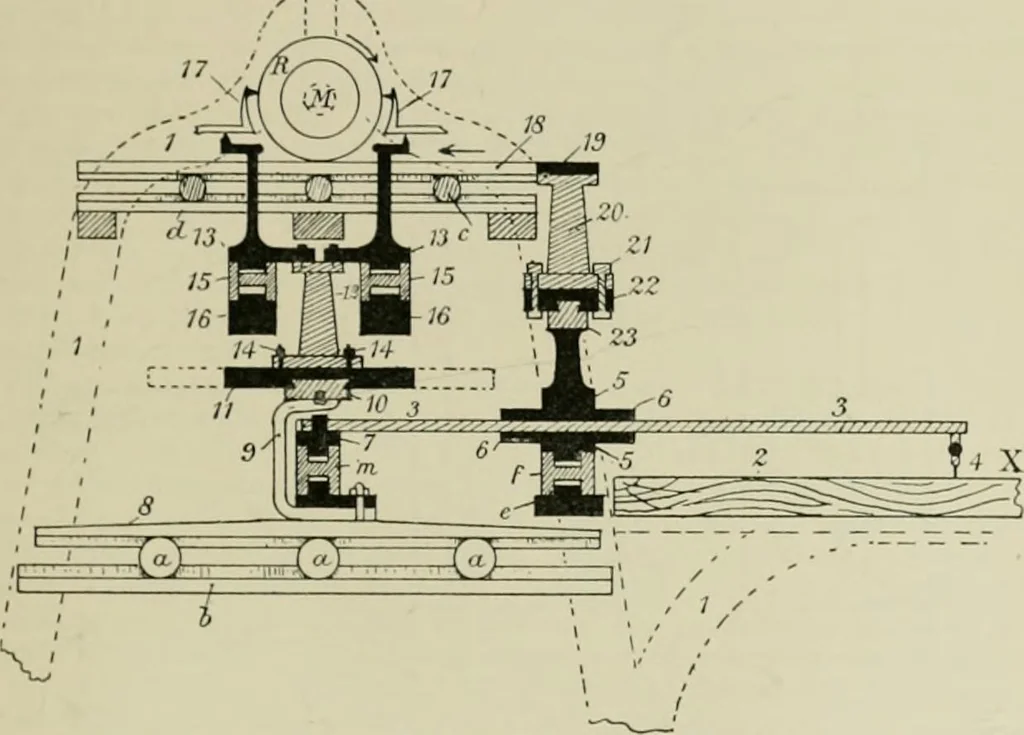

ished with a tracingpoint for going over the design, and the inclined movable levers are connectedwith diamond points which hear mi the varnished roller and cut a reducedreplica of the design thereon through the film of varnish, thus laying bare thecopper in readiness for the etching hath. ffigs,… … FlG. 34.—Section of the Bat-table pentagraph. The parte are numbered and lettered as follows:—(1) is the framework oftic machine, to which the various fixed rails and bars are attached : (2) the tableupon which the design to be transferred to the roller R is laid ; (.>) tic tracer rod, carrying…
