The principles and progress of printing machinery (1900)
Southward, John, 1840-1902, Wilson, Frederick John Farlow. Account of modern printed machine · London : E. Menken · leaf 107

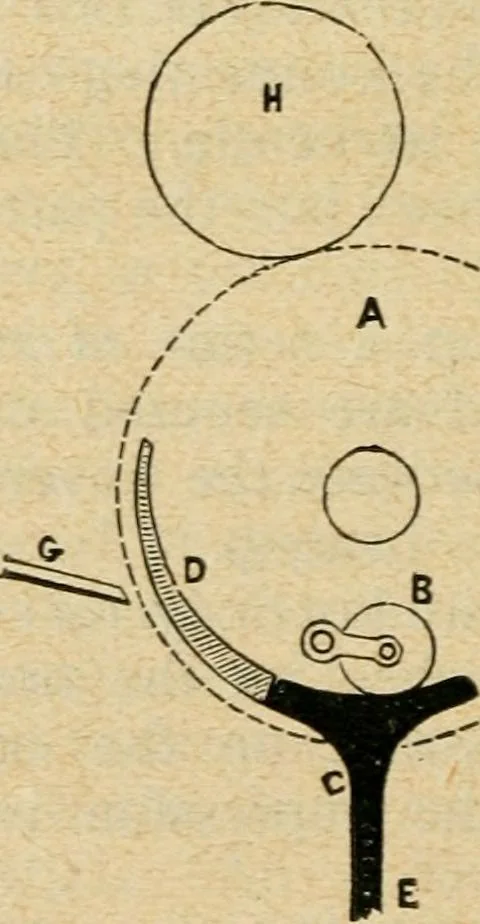

ay, in order to allow the rack on the coffin topass underneath; but immediately the cylinder is movedby the pawl, this wheel is forced into gear, and travels withthe table. The grippers are governed by a cam on the shaft atthe end of the machine. On the off side of the gripperbar, outside the… … Working of the Grippers, and the Taking-off Apparatus. F, Taking-off board. G, Laying-on board.H, Taking-off. Fig. 41. A, Impression cylinder. B, Gripper Tumbler. c, Crutch. D, Fixed Slide. is thrown into gear, this crutch or shape slightly drops,allowing the spring inside the cylinder to close the…
