The principles and progress of printing machinery (1900)
Southward, John, 1840-1902, Wilson, Frederick John Farlow. Account of modern printed machine · London : E. Menken · leaf 48

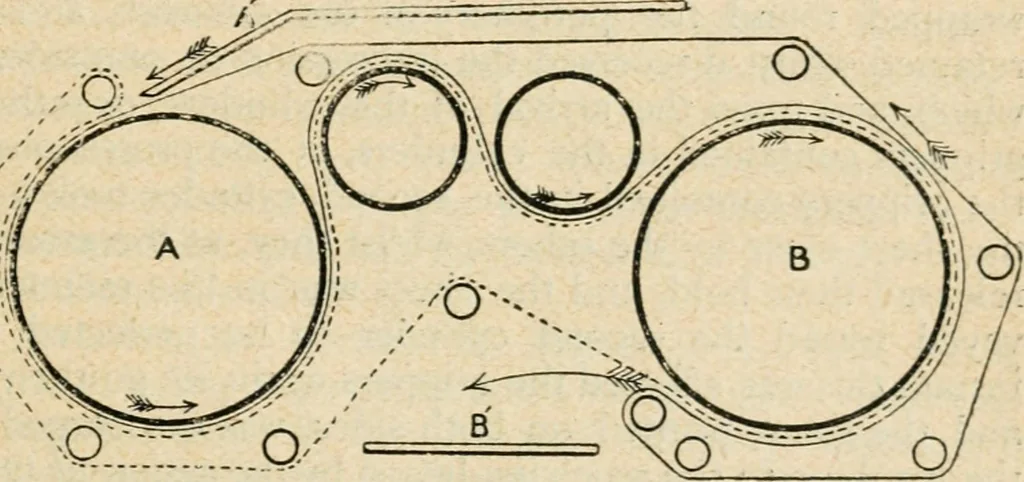

, and both sides of the sheetprinted during one passage of the tables. In the ordinaryconstruction, invented by Cowper & Applegath, the sheetto be printed is fed from the top of the first of the impres-sion-cylinders, and is then carried, by means of tapes orgrippers, under the first cylinder… … Fig. 15.A, Laying-on board.B, Taking-off board. Overhead Feeding. A, Outer-form cylinder. B, Inner-form cylinder. second cylinder, where it receives the second impression,and is then delivered upon a taking-off board, situate at thebottom part of the machine between the two cylinders—the tables in…
Printing machinery and supplies
