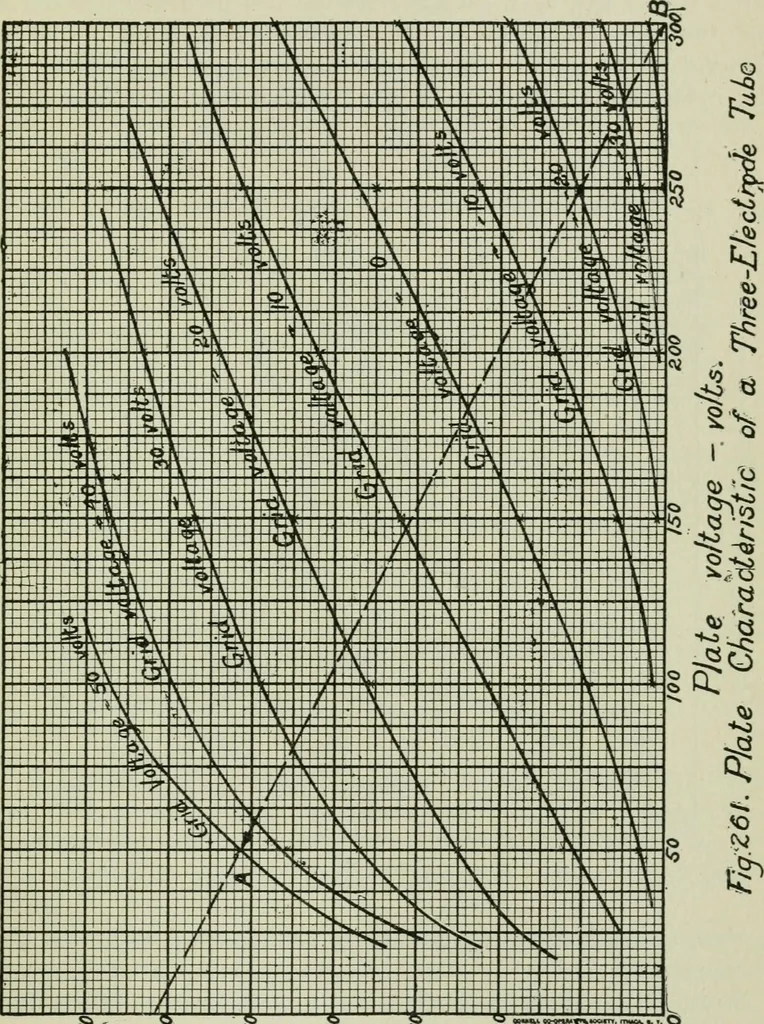

a resistance R is inserted in the plate lead, inseries with the plate battery Eh, then the only values of ev andh which can exist when the tube is operating are given by theequation ep^Eb—Rip, where ^b and R express the character-istics of the equipment used in connection with the plate oroutput… … ,0, . «o ^ «0 *« • <l ■vdJadarwijiiu ut yuajjno ^^^Irf externally placed between the filament and plate of the tube.If the grid voltage, for example, is —10, then the plate voltagewill be 220 volts and the plate current 16 milliamperes, as de- 466 ELECTRON TUBES. termined in Fig. 2<51 by the…
