Hawkins, N. (Nehemiah), 1833- · New York : Theo. Audel · leaf 233

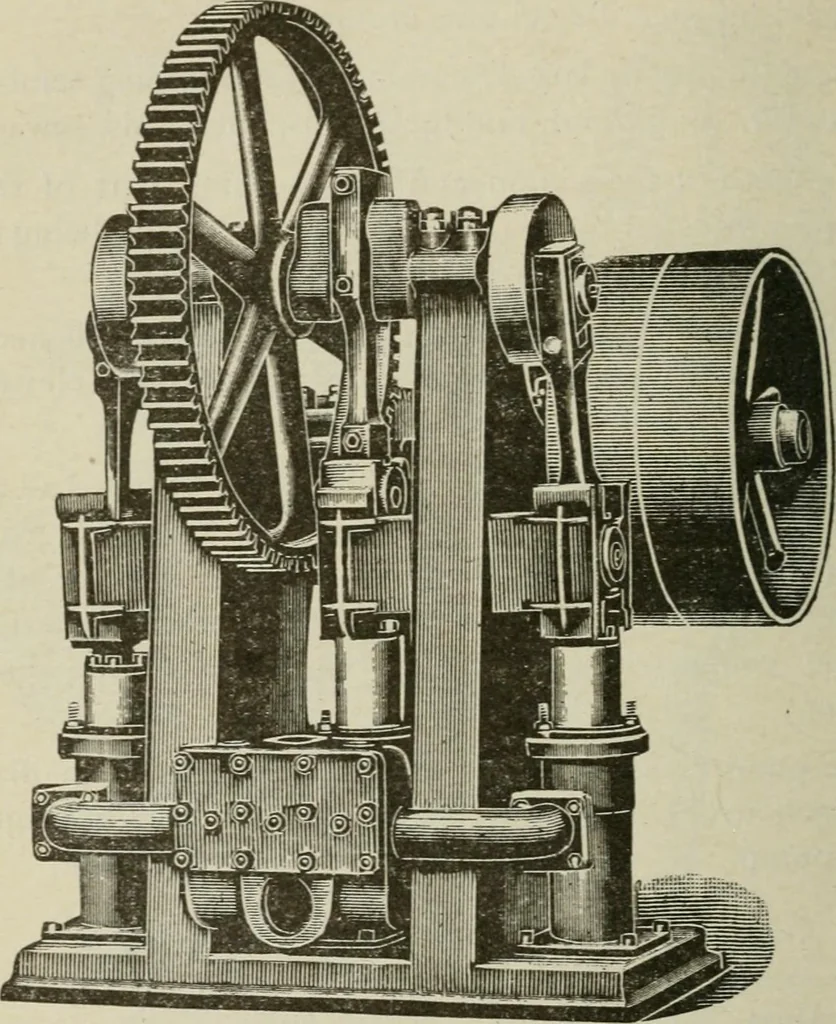

. 4 in. 0.65 gals. 3 in- 5 to I 20 X 3 in. 4 6 I. 3 3 5 to I 20x3 5 6 1-5 4 4 4 toi 20 X 4 5 8 2. 4 4 4 to I 20 X 4 7 8 4- 5 5 4 to I 30x5 8 lo 6.5 6 6 5 to I 36x6 8 12 7.8 6 6 5 to I 36x6 234 Pumps and Hydraulics. The Deane single acting triplex power pump is shown in Fig.213. Pumps of this type… … Fio. 213. The pillar, or column design of frame is employed in thispump which secures great strength with the least weight ofmaterial, and at the same time is accessible for adjustment or re-pairs. The bearings for both the steel shafts are unusually long,which reduces the pressure per square inch…
Hydraulic machinery · Pumping machinery
