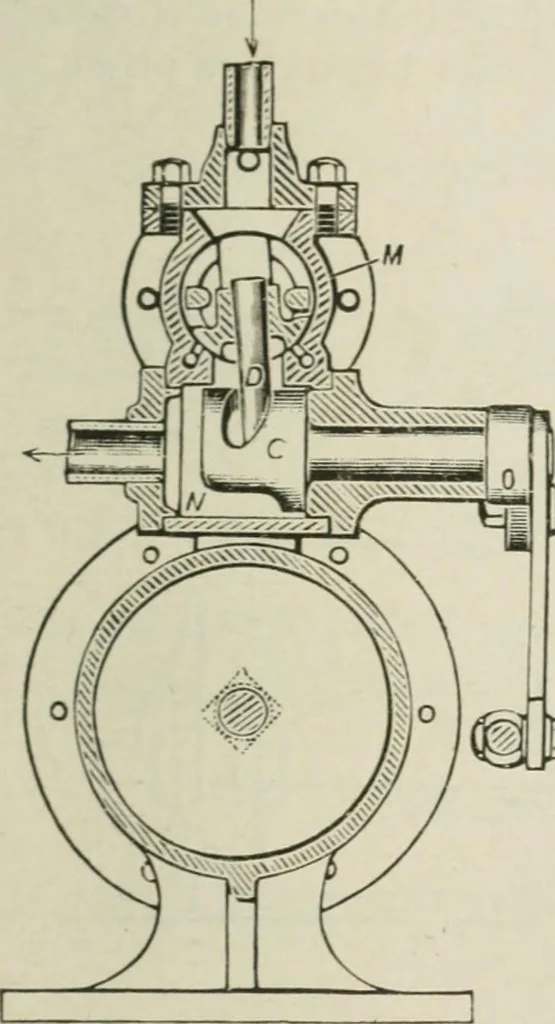

lever to the connecting rod.The side lever and cam occupycorrect relative positions, therefore, the lever should be securedto the cam shaft while in this position. The stroke may beregulated by raising or lowering the end of the connecting rodin the slotted end of the slide lever. Raising the… … Fig. 251. 290 Pumps and Hydraulics. LAJDLAW-DUNN-GORDON. The single cylinder pumps of this make are equipped withthe gear illustrated in Fig. 252, in sizes varying from 4 inclu sin diameter by 5 inches stroke to 28 inches in diameter by 2\inches stroke. The arrangement of valves and ports is shown…
