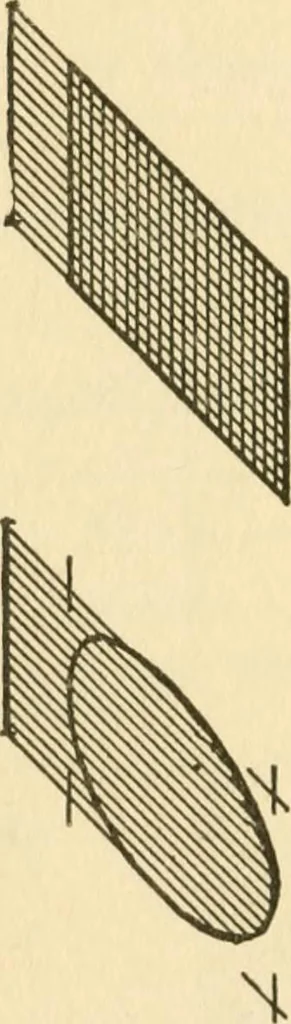

of- Sh a cfo w > i FLAN £L.S,VATiOAJ Fig. 39. Shadows of a Square and a Circle Parallel to Plane of Shadow. 266 AECHITECTURAL DRAFTING line connecting the shadows of the ends of theline (see Fig. 38). As in the case of a line parallel to the planeupon which the shadow falls, the shadow is…
