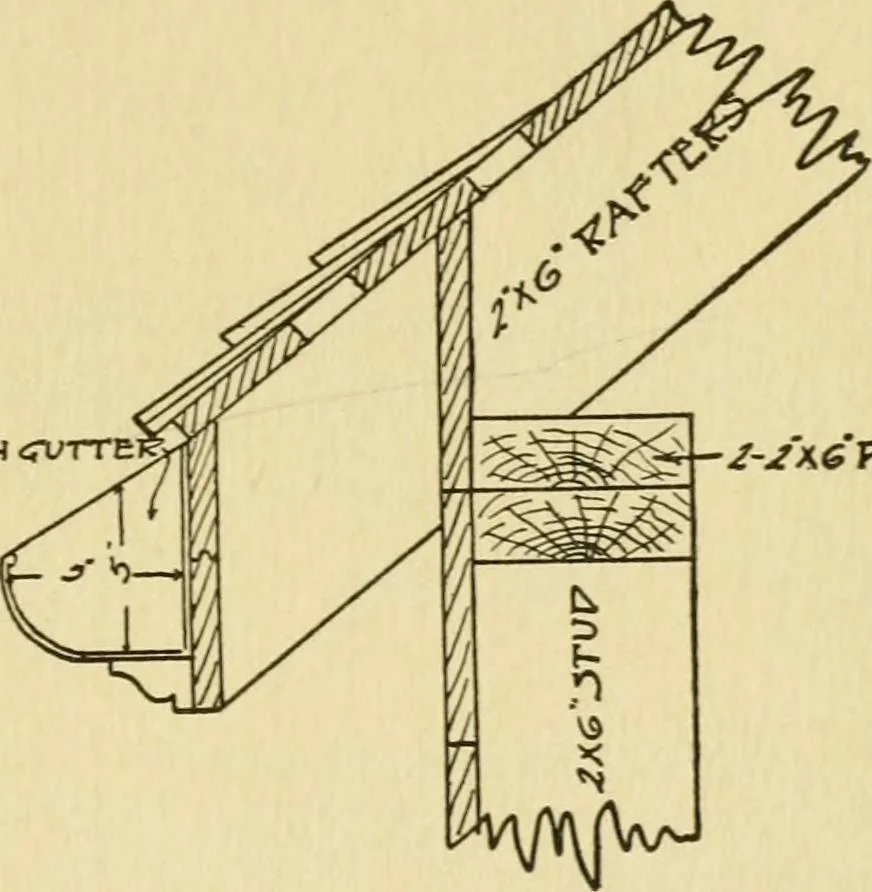

ith goodcare, the life of these two materials is limited. One important feature of a good gutter is AECHITECTUEAL DEAFTIXG 271 to have the metal run well up under the roofingmaterial, and out over the crown-mould. Thiskeeps any water from overflowing up under theroof if the gutter becomes choked… … ^--/ACPLAT^ Fig. 45b. Type of Open Cornice Known as Close-Eave Cornice. same material as the gutter. The shape of thedown-spouts may be either round or rectangu-lar; a very common form is made of corrugatediron, either round or rectangular. The gutter,especially if a hanging gutter, must be…
