Radford's architectural drawing : complete guide to work of architect's office, drawing to scale--tracing--detailing--designing --classic order of architecture. A complete and thorough course, clearly written and beautifully illustrated; suited alike to individual study and class instruction (1912)

Radford, William A., 1865- · Chicago, The Radford Architectural Company · leaf 147

An illustration from Radford's architectural drawing : complete guide to work of architect's office, drawing to scale--tracing--detailing--designing --classic order of architecture. A complete and thorough course, clearly written and beautifully illustrated; suited alike to individual study and class instruction, 1912, leaf 147

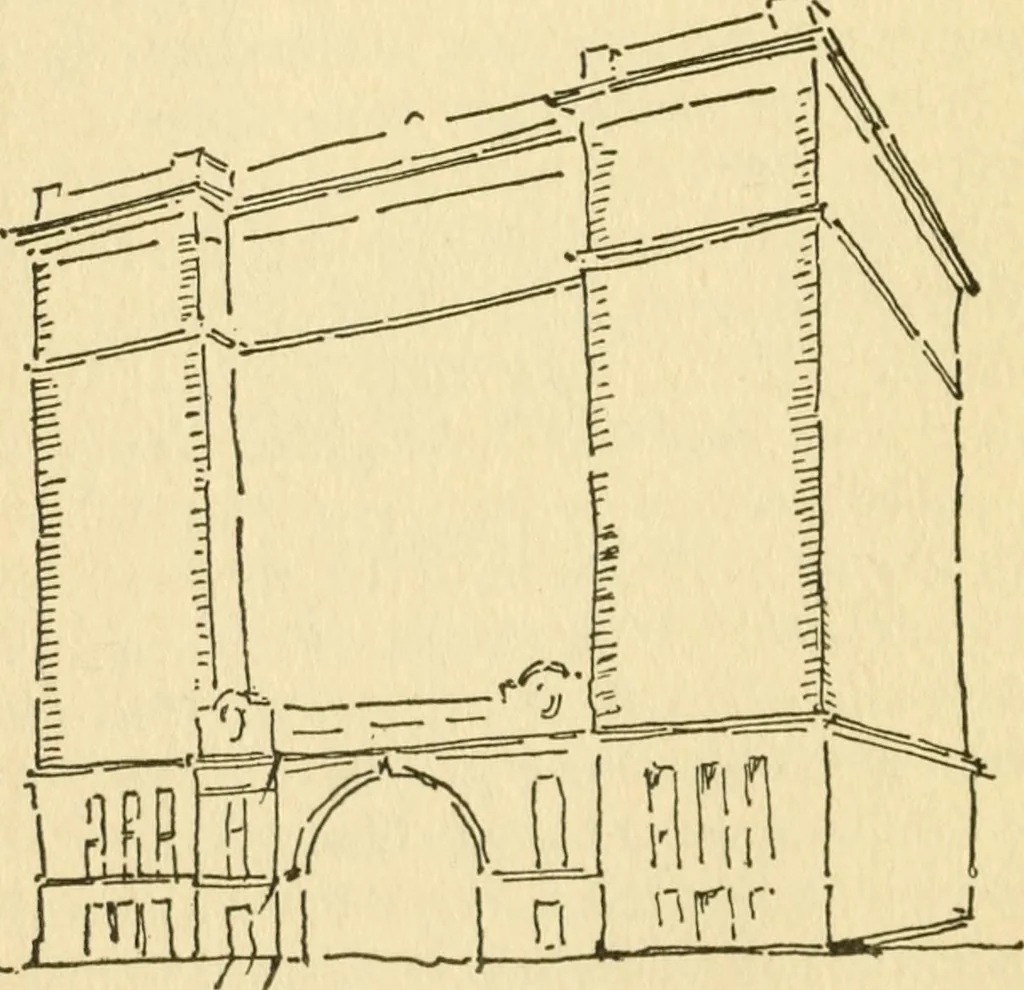

Jig. 79. Sheet of Drawings Laid Out with a Sense of Proportioa ARCHITECTUEAL DRAFTING 305 rough or uneven, but the general drawing showsthe effect of proportions. The lines, instead ofbeing long and continuous, are made up ofshort lines almost joining. PEN-AND-INK RENDERING Finished drawings may be…
