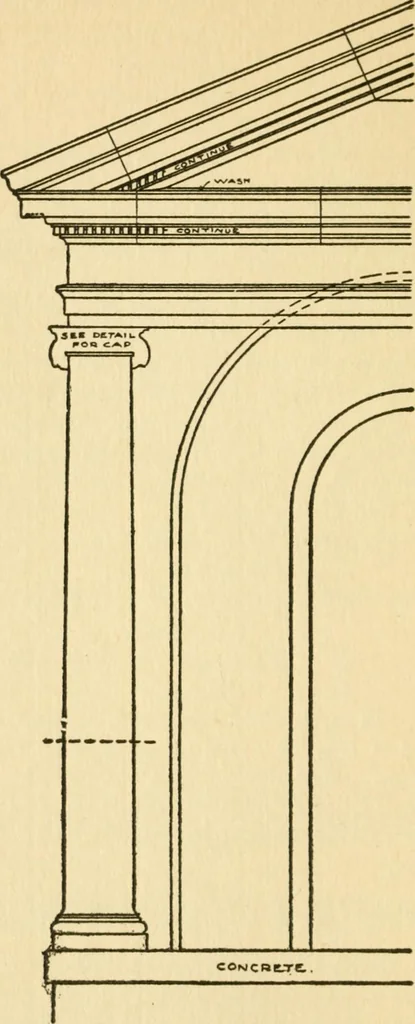

An illustration from Radford's architectural drawing : complete guide to work of architect's office, drawing to scale--tracing--detailing--designing --classic order of architecture. A complete and thorough course, clearly written and beautifully illustrated; suited alike to individual study and class instruction, 1912, leaf 89 — . wide.Foot-rest, 7 in. high and 9 in. fromcounter. Urinals—26 in. to 30 in., center to center. Rugs—4 ft. 6 in. by 7 ft. 6 in. up to 11 ft. 3 in. by 15 ft. The above dimensions are only general, butwill be of assistance in laying out the furnituieof a house. MATERIALS OF CONSTRUCTION There will be… … Fig. 21. Elevation of a Porch.See also Figs. 22 and 23. ARCHITECTURAL DRAFTING 357 Slate Roopimg
