Radford's cyclopedia of construction; carpentry, building and architecture. Based on the practical experience of a large staff of experts in actual constrcution work (1909)
Johnson, Alfred Sidney, 1860-, Radford, William A., 1865- · Chicago Radford Architectural Co · leaf 110

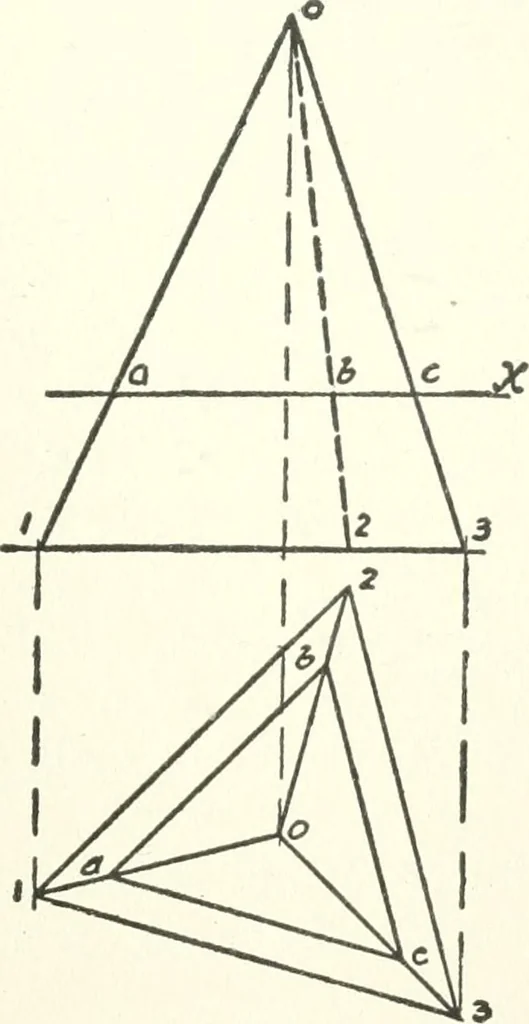

a straight line. Familiar MECHANICAL DRAFTING 87 examples of this kind of intersection are to befound on every hand. The edge of a box is theline of intersection of two adjoining sides, whichare planes; the ridgepole of a pitch roof is theline of intersection of the two sides of the roof;and so on… … rig. 61. Triangular Pyramid Intersected by a Plane. Let X represent a plane seen edgewise.Then X is parallel to the H plane, and perpen- 88 MECHANICAL DRAFTING dicular to V. This plane cutting the pyramidwill intersect all of the inclined faces, givingthereby three lines of intersection. The…
