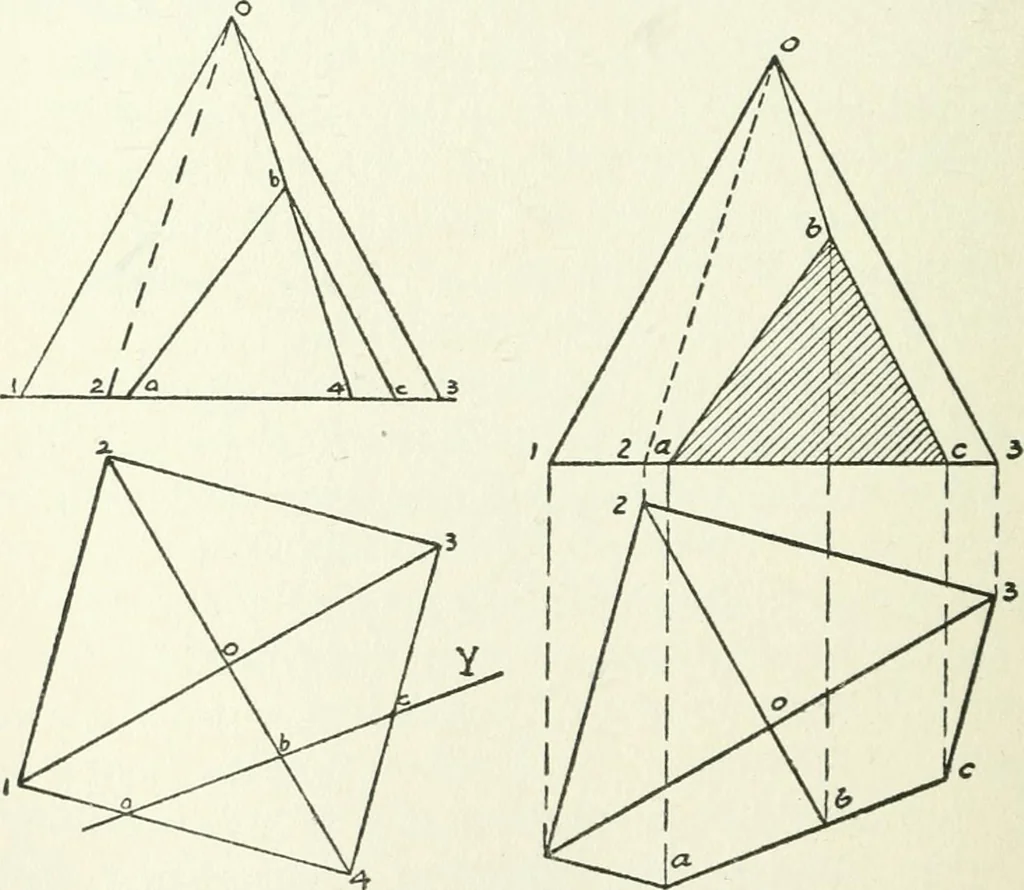

m o to 2is similarly found by a horizontal line from 2to 2\. The lengths 0-4 and 0-3 are respectivelyequal to those of o-l and 0-2. The points 1, 2,3, 4, and V are then located and joined, thuscompleting the required development. In connection with the construction forfinding the true length of the… … Fig. 65. Square Pyramid Cutby Plane Perpendicular to H. Fig. 66. Square Pyramid withCorner Cut Off. 83. A square pyramid like that of Fig. 63, isshown again in Fig. 65, but intersected by a MECHANICAL DRAFTING 93 plane Y perpendicular to H. Plane Y is there-fore seen edgewise in plan. The points of…
