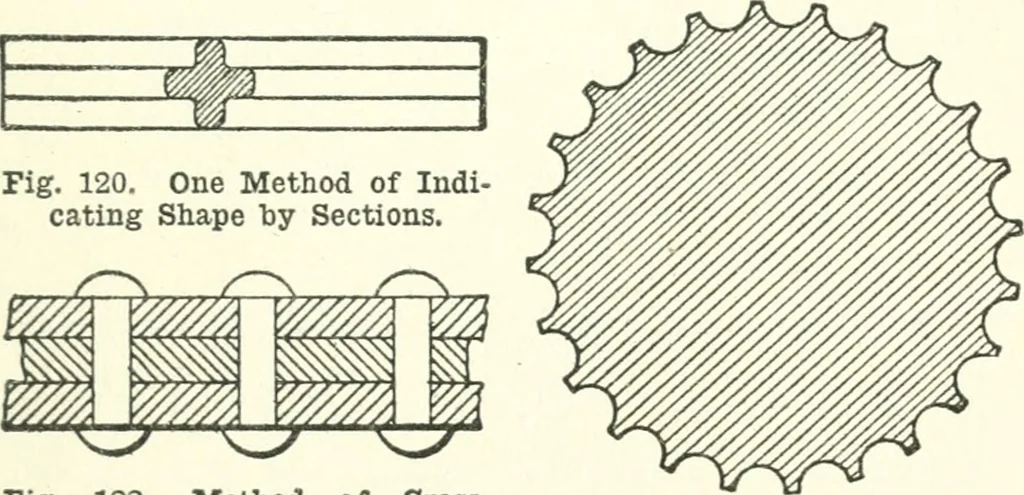

TO HOUSE AT HOPKINTON, MASS. MECHANICAL DEAFTING 161 resented, especially in the case of metals, bya system of one or more sets of parallel linescovering the sectioned smface. The surfacetreated in this way is said to be cross-hatched.In the matter of cross-hatching, there is no uni-versally… … Fig. 122. Method of Cross-Hatching Sections of Ad- Fig.joining Parts. 121. Section of a FlutedColumn. tinguished by cross-hatching; and somewhereon the sheet, there should be placed small blocksof the kinds of cross-hatching used, giving thenames of the materials which they are intendedto…
