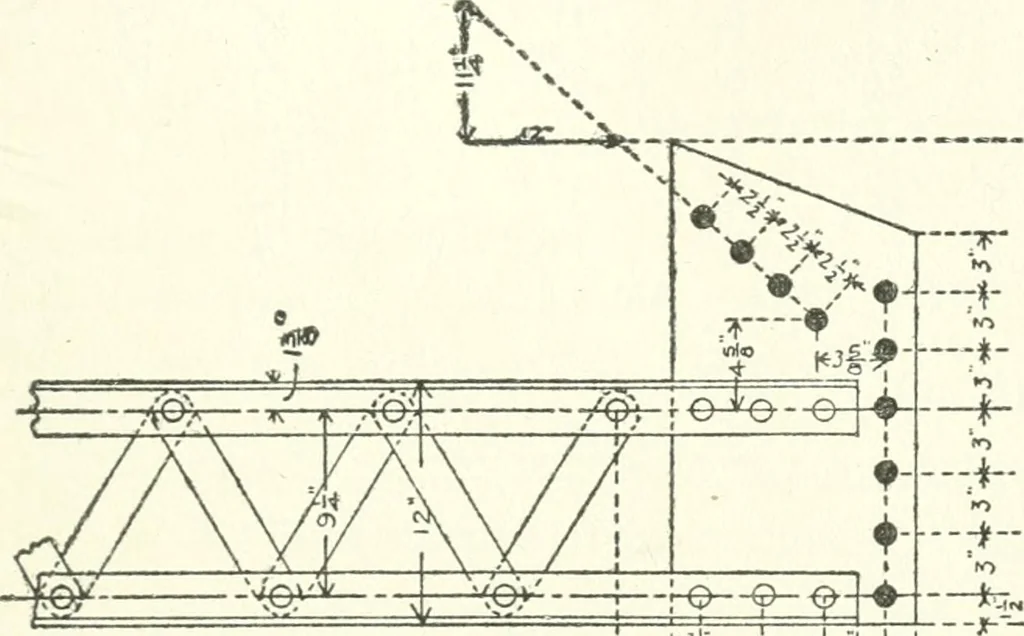

shop, and this isknown as shop riveting; some riveting, how-ever, must necessarily be done at the place ofconstruction, and this is known as field riveting. MECHANICAL DRAFTING 181 On the drawing, the rivets to be shop-drivenare sho\Yn in position with the lieads drawn;while for those to be riveted… … .1.-1.iL rig. 157. Illustrating Method of Indicating Shop and Field Eivets. laced together, like the column shown in sectionin Fig. 145, two angles at the top, and two atthe bottom. The blank circles at the ends ofthe lacing bars, and those at the ends of theangles, are the heads of the shop-driven…
