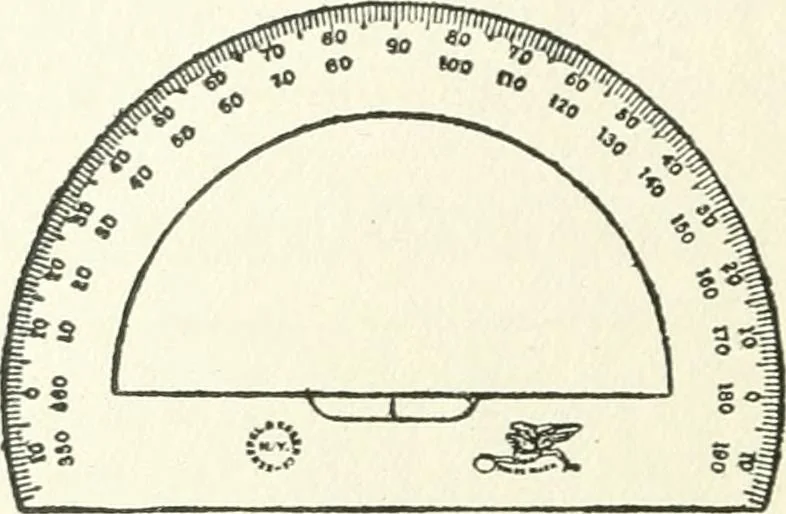

dividers or com-passes. It consists essentially of the beam (notshown in the drawing), a thin straight bar ofhardwood, and two pieces which slide along thebar and which may be clamped to it at any de-sired distance apart. These sliding attachmentsare called channels, and carry one the needle-point,… … Fig. 12. Protractor. 12. The protractor is shown in Fig. 12. Thisinstrument, while not in such constant use assome of the others, is nevertheless necessary at
