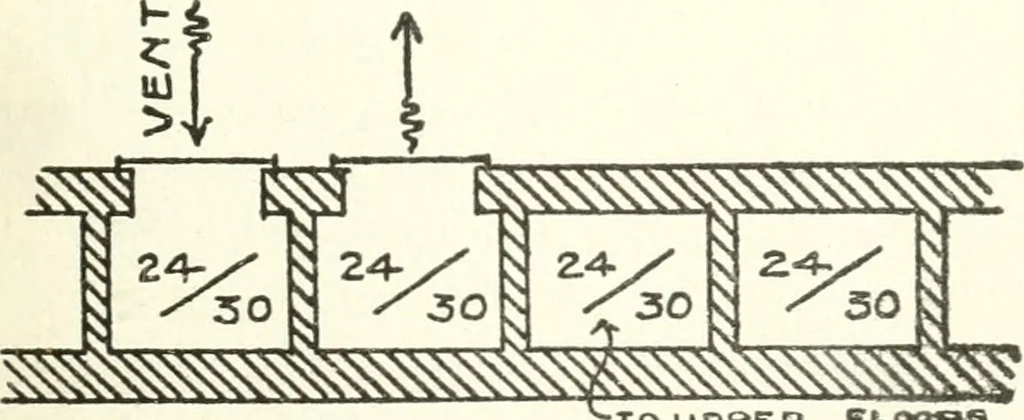

or Hot-Water Radiator; B—Hot-Air Register. tion requiring the least amount of pipe, wire,etc. Therefore show all of these fixtures, andthere can then be no dispute as to the true intentof the plans and specifications. For the heating, about all that is necessary isto show the location of the… … TO UPf^EQ Fkocrss Fig. 18. Conventional Representation of Flues for Air Supplyand Ventilation. 253 ARCHITECTURAL DRAFTING describe the kind of heat, and go into detailabout pipe, fittings, etc. In hospitals, public buildings, and school-houses, where there are a number of occupantsin each room, it…
