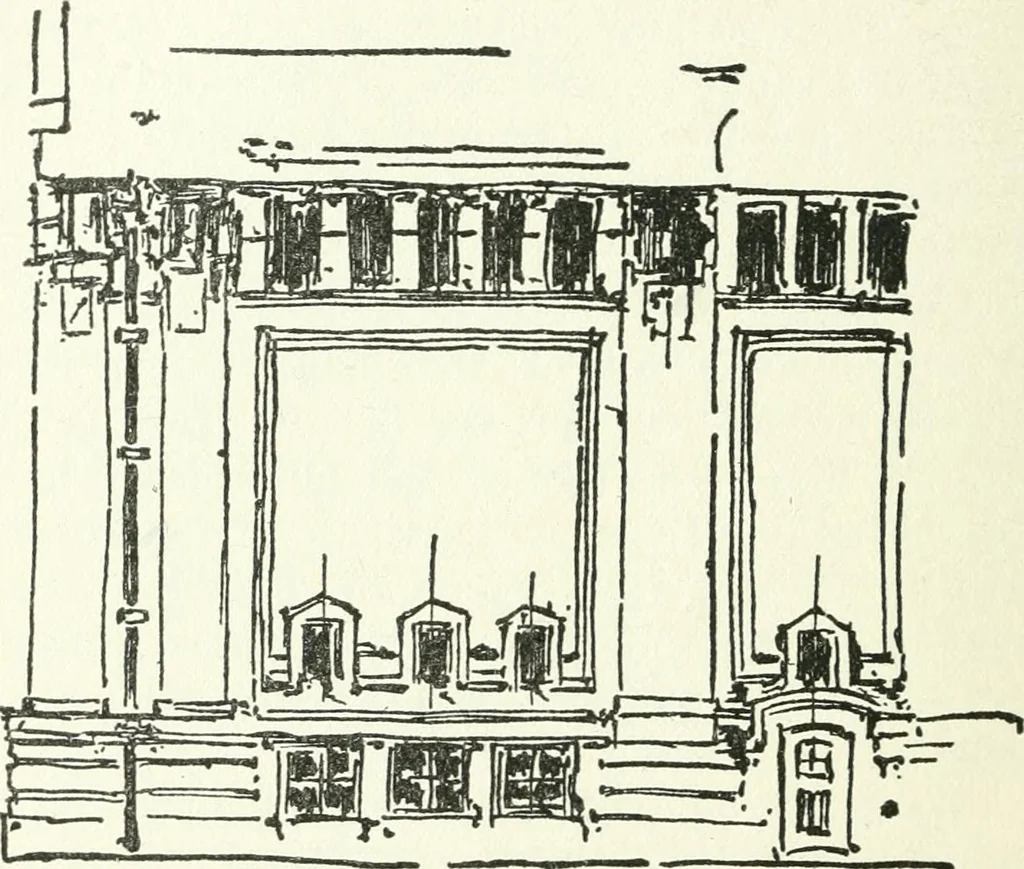

e-sented by the shadow they produce, there beingno definite line for the edge of the roof. Forthe corners of the building, there is not a hard,sharp line, but a broken, irregular line. The 302 ARCHITECTUEAL DRAFTING doors and windows are all represented by theshadows they cast. It will be noticed… … Fig. 78. A Quickly-Made Preliminary Sketch. usually outlined with a light line, to get theproper lines and proportions; in other words,just enough lines are given to show the properrelation of dimensions. Having outlined the object, then commencewith the soft, broad pencil, and indicate thetexture…
