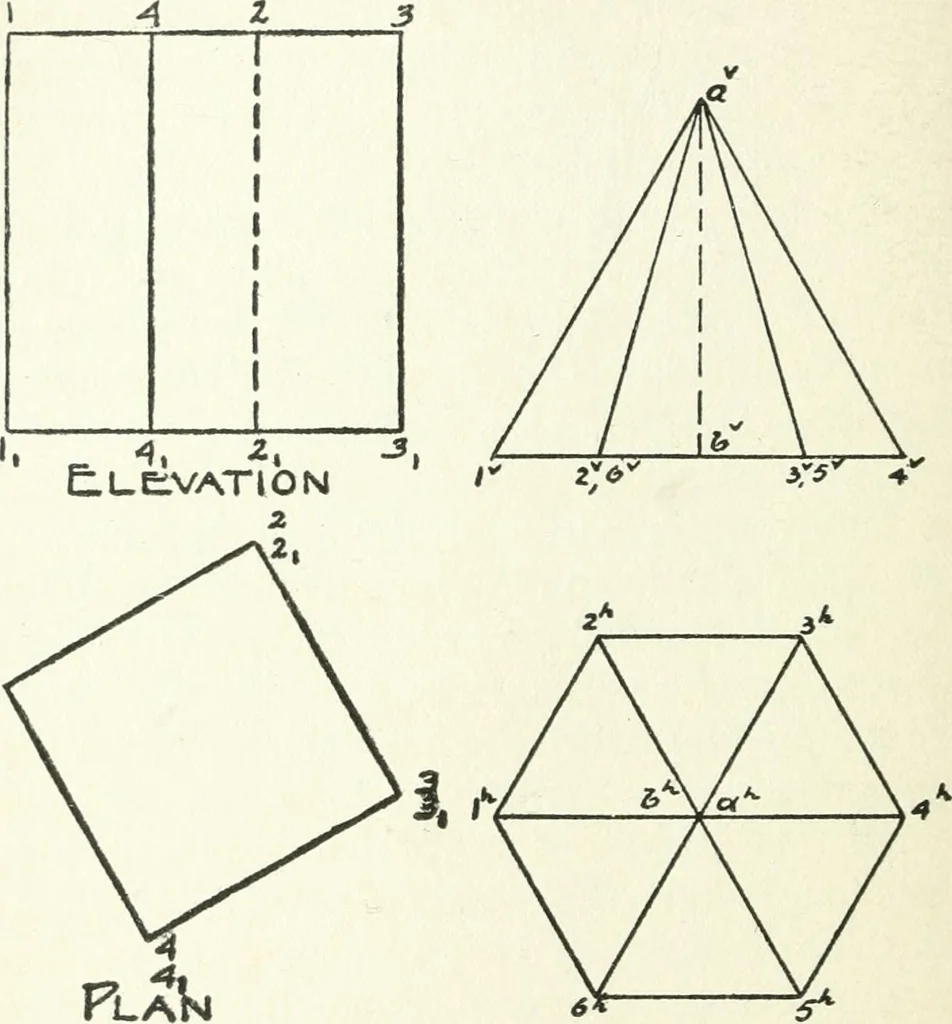

s length vertical. Noticethe numbering of the top and bottom. Whyare some of the faces in elevation shown in theirtrue size? Only one dotted edge appears. (Adotted edge in any projection is understood tomean an edge which is not visible in that view.) 56. In Fig. 48, a regular hexagonal pyramidis… … Fig. 47. Elevation and Plan of Square Prism with Length Vertical. Fig. 48. Regular HexagonalPyramid with Axis Per-pendicular to H. Two of the inclined edges, a-1 and a-4, areshown in their true lengths in elevation at a^-1^and aM, since the lines in space are parallel tothe vertical plane. 57. Fig.…
