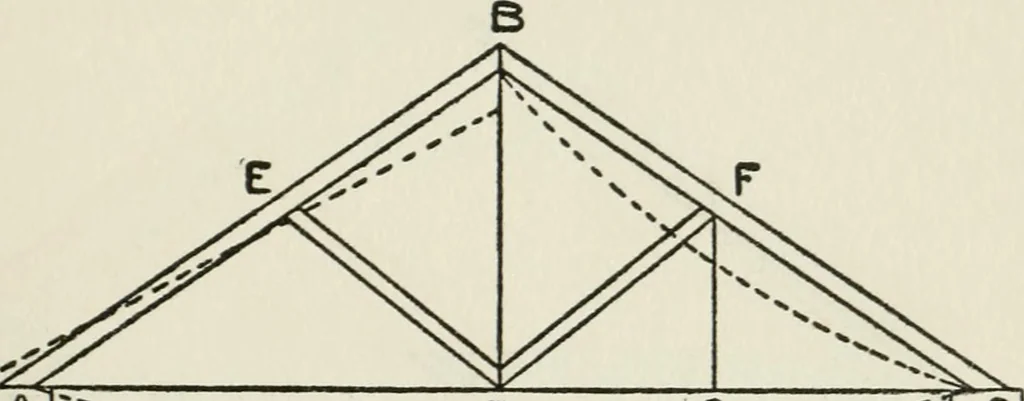

idand the tie AC incapable of extension, B will PRACTICAL CARPENTRY 111 become a fixed point. This, then, is the ordinarycouple roof, in which the tie AC is a third piece oftimber, and which may be used for spans ofUmited extent; but when the span is so great thatthe tie AC tends to bend downward… … A D ^ ^m ^ FIG. 133 be impossible for AC to bend downwards so longas AB, BC remain of the same length: D, there-fore, like B, will become a fixed point, if the tieBD be incapable of extension. But the span maybe increased or the size of the rafters AB, CB bediminished, until the latter also have a…
