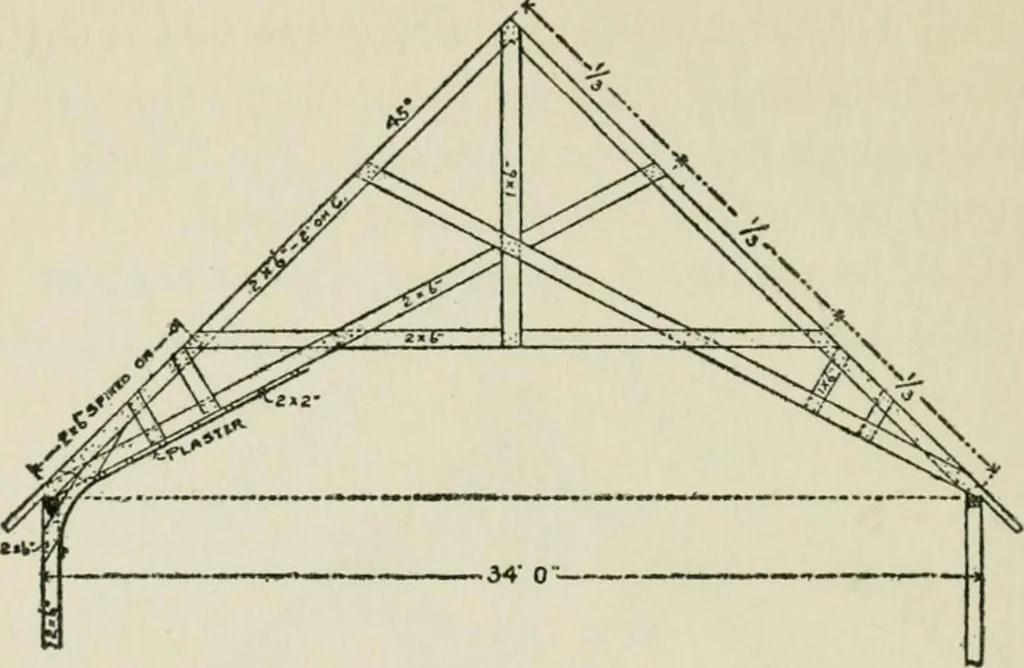

FIG. 137 post, especially where it is necessary to haveapartments in the roof. In such a case recourseis had to a different manner of trussing. Twosuspending posts are used, and a fourth elementis introduced; namely, the straining beam a b(Fig. 139), extending between the posts. The 116 PRACTICAL… … FIG, 138 In some roofs, for the sake of effect, the tiebeam does not stretch across between the feet ofthe principals, but is interrupted. In point of
