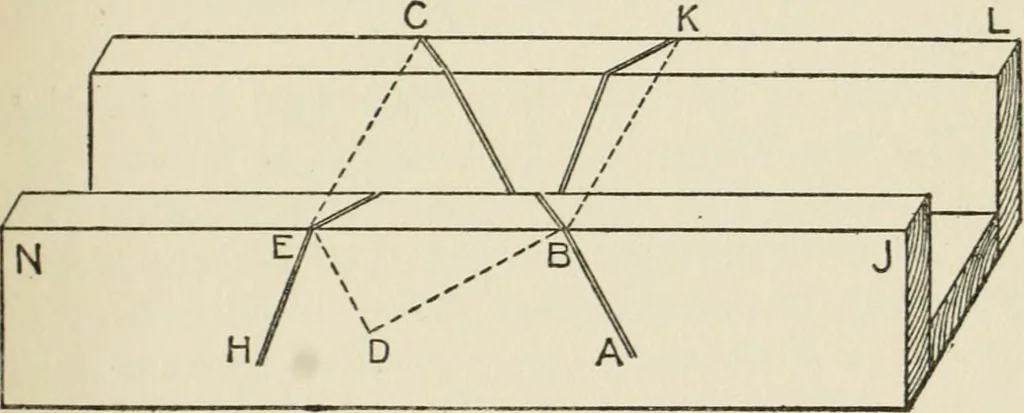

eline DB at ihg, etc.; from these intersectionswith DB draw lines Tl, hp, gr, etc., parallel to Bk,until they intersect the first group of lines drawnperpendicular to Bk, and the intersection of eachset of two lines drawn from the same point on thehorizontal section will give the similar point of… … FIG. 186 is equal to Bi; and consequently 1 is the same dis-tance from Ba, which is in accordance with prin-ciple already shown. The intersection of each setof lines being found and marked by a point, thecontour of the moulding may be sketched in, andthe rake moulding, of which the section is…
