Radford's cyclopedia of construction; carpentry, building and architecture. Based on the practical experience of a large staff of experts in actual constrcution work (1909)
Johnson, Alfred Sidney, 1860-, Radford, William A., 1865- · Chicago Radford Architectural Co · leaf 104

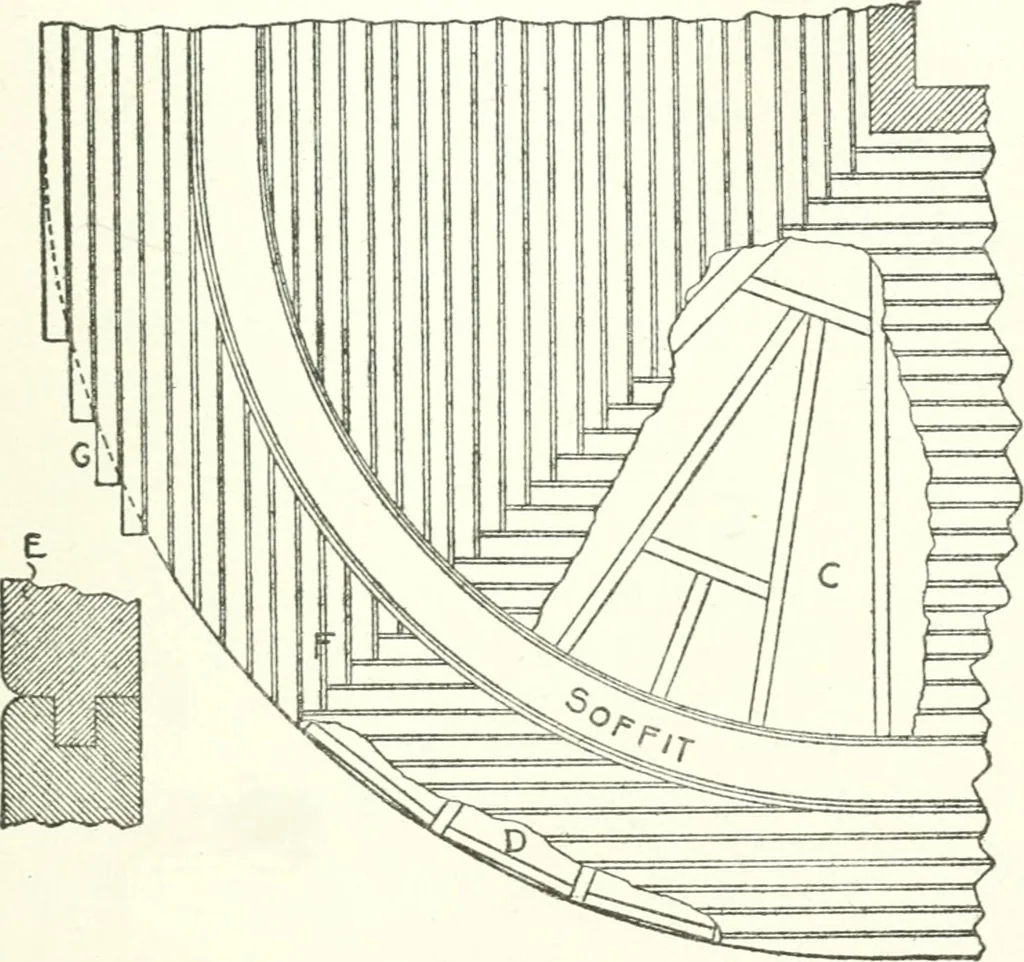

r Porch. blocks, and putting a formed plate on these.For all circular mouldings, it is better to havethem solid, and they will then alwaj^s stay inplace, as there will be no kerf joints to open upafter the work is completed. Another circular porch is shown in Figs. 43 FRAMING 81 and 44. It looks… … Fig. 44. Ceiling and Roof Framing—Circular Porch. floor where steps come on the circle. Opening C, in Fig. 44, shows how the heelsof the ceiling joists are put in to give supportfor the heels of the rafters. F in Fig. 44 shows the method used for put- 82 FEAMING ting a ceiling plancher on a…
Architecture · Building
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
