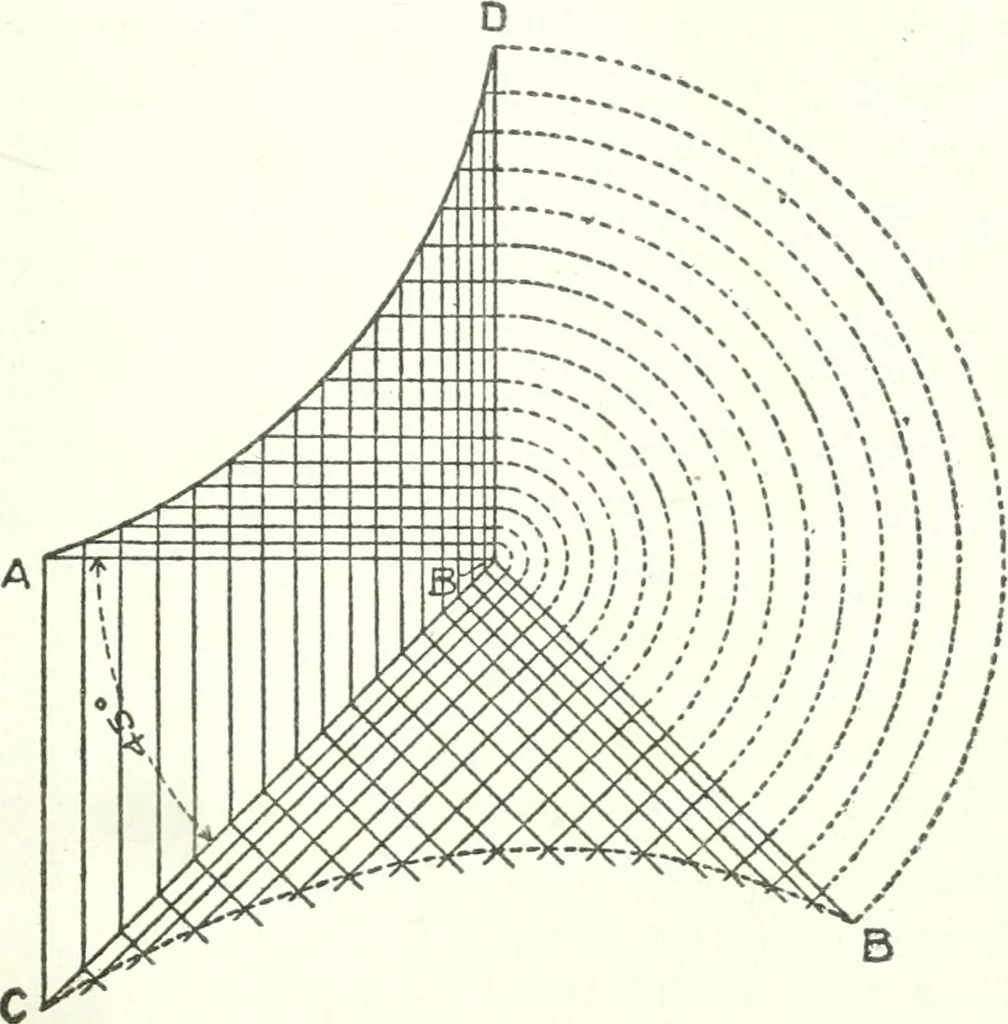

and placed radiatingto a common center. Further explanation, wetrust, is not necessary. To Develop Curved Rafters. A questionthat frequently comes up for solution, in get-ting out rafters that have a sweep or curve, is FRAMING 117 how to make the hips without scribing themfrom the common rafter,… … Fig. 64. Developing Curved Hip Rafter. In the illustration, AB represents the runof the curve for the common rafter, and C Bthe same for the hip. B D represents the rise;and it necessarily follows that AD representsthe curve given the common rafter. For asquare-cornered building and where the pitch…
