Radford's cyclopedia of construction; carpentry, building and architecture. Based on the practical experience of a large staff of experts in actual constrcution work (1909)
Johnson, Alfred Sidney, 1860-, Radford, William A., 1865- · Chicago Radford Architectural Co · leaf 248

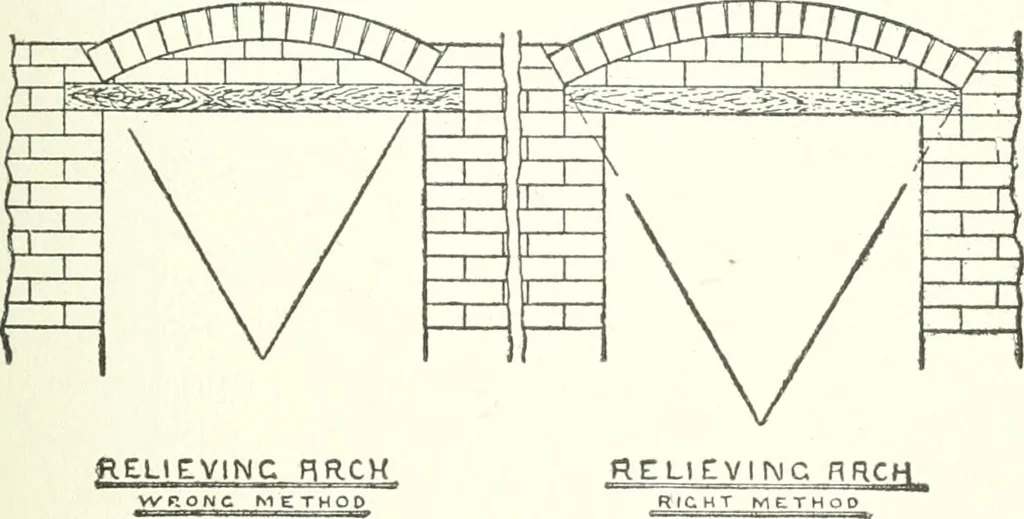

d be unaffected,and would continue to carry the weight above. FRAMING 217 Building inspectors and managers should insiston the adoption of this correct method, for itcosts no more than the incorrect one, and theadvantage of it in case of fire is greatly in itsfavor. Of course, for such arches, no… … rig. 110. Segmental Arches in Brick Walls. Upon this centering, which is removed whenthe mortar is properly set, the core being thenfilled in with brickwork. For openings up to three feet or thereabouts,a relieving arch of a single ring of half-bricksis all that is required; but for larger…
Architecture · Building
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
