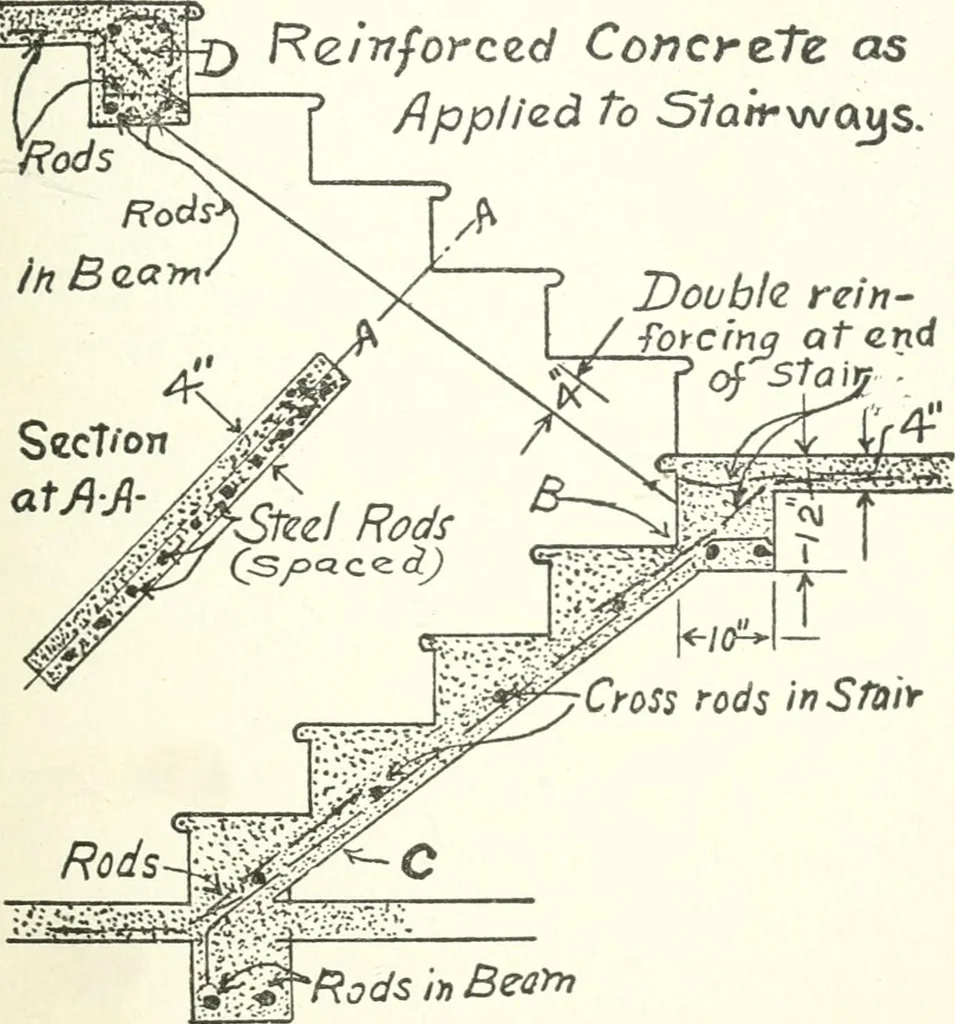

loads,and support it so that no two supports are morethan ten feet apart. This slab is reinforced with half-inch squaretwisted or five-eighths round rods, spaced as fol-lows—for dwellings, ten inch centers; for busi- FRAMING 229 ness blocks, six to eight inch centers; and forpublic halls and… … Cfoss rods inSftny .v:.i -Av;.() •^^■■•■■^^v -<-v.:-. Fig. 116. Details, Concrete Fireproof Stairs. The full-length rods all pass over or hookonto the rods in the cross-beams; and the doublereinforcing consists of rods about five feet long,passing over the beam, with the ends…
