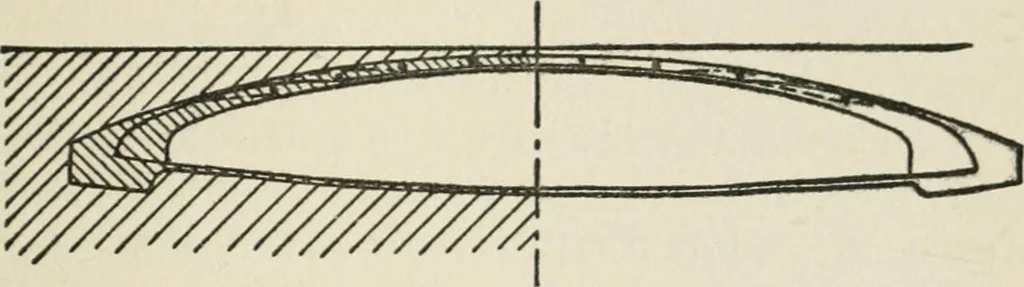

hway arch CEMENT CONSTRUCTION 81 bridges are usually low and flat, and vary inspan length from 20 to 100 feet. The ordinarytype consists of an arch-barrel and spandrelwalls, with an earth filling between the walls.Ornamental concrete parapets are often used,although ordinary gaspipe railing is very… … Fig. 37. Cross-Section of Yorktown Bridge Shown in Plate 3 (A). Fig. 37 gives a cross-section of the same arch.This bridge was built in 1904, at Yorktown, In-diana. It has a sxDan of 95 ft.; a rise of 11 ft.1 in.; a height of opening of 15 ft. 7 in., andcrown thickness of 26 inches. The roadway…
