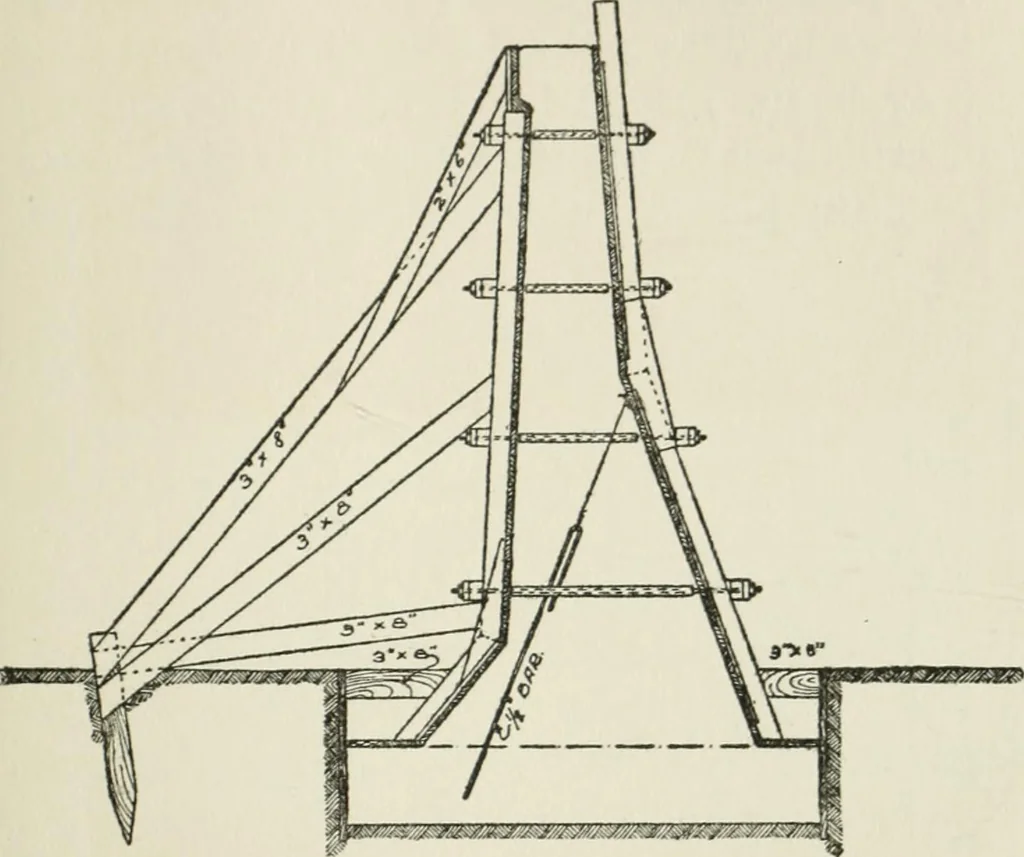

View showing interior of pocket.CONCEETE COAL POCKET. PLATK 2.)~CKJIKNT CoNSTItrCTIO.V. CEMENT CONSTRUCTION 257 shown in Fig. 90 furnished an easy and effectiveway of lining up that form. Plate 14 (A) is an illustration of a counter-fort retaining wall built by the Lackawanna … Fig. 90. Form Bracing for Wall Shown in Fig. 88. Railroad in Buffalo, N. Y. This wall was built aspart of the Buffalo track elevation work, and is24 feet high (see Fig. 91). The same type ofconstruction was used for all walls over 12 feet.For walls under 12 feet in height, the sectionshown in Fig.…
