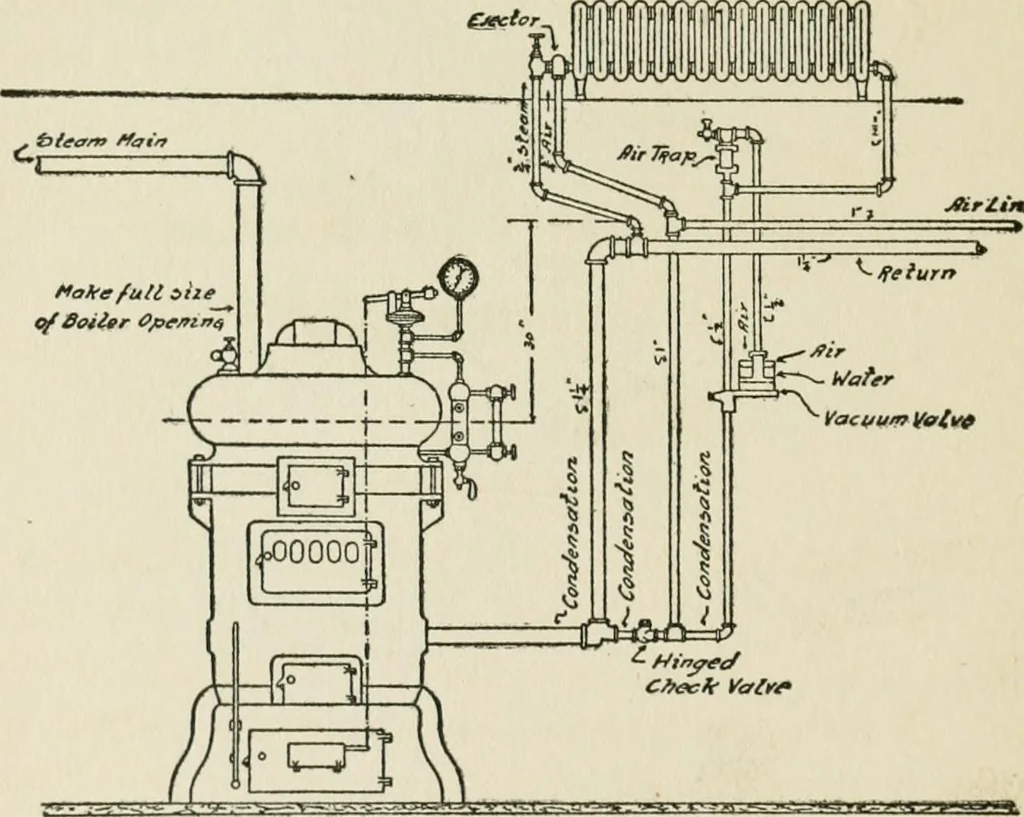

Ti^. 104. Connections at Boiler in Gorton System of VacuumSteam Heating. 134 HEATING AND VENTILATION lines similar to those of the K-M-C and Tranesystems. With it the air is exhausted to theatmosphere through an air-trap. A small steampipe connected directly to the trap from theboiler, acts as an… … Fig. 105. Moline Vacuo-Vapor System of Heating. quite similar to other vacuum systems—that is,in so far as the steam supply and air-line areconcerned. The air and steam in the air-line aretaken to a condensing radiator; and an ejectorplaced between the supply valve and theradiator creates the…
