Radford's cyclopedia of construction; carpentry, building and architecture. Based on the practical experience of a large staff of experts in actual constrcution work (1909)
Johnson, Alfred Sidney, 1860-, Radford, William A., 1865- · Chicago Radford Architectural Co · leaf 211

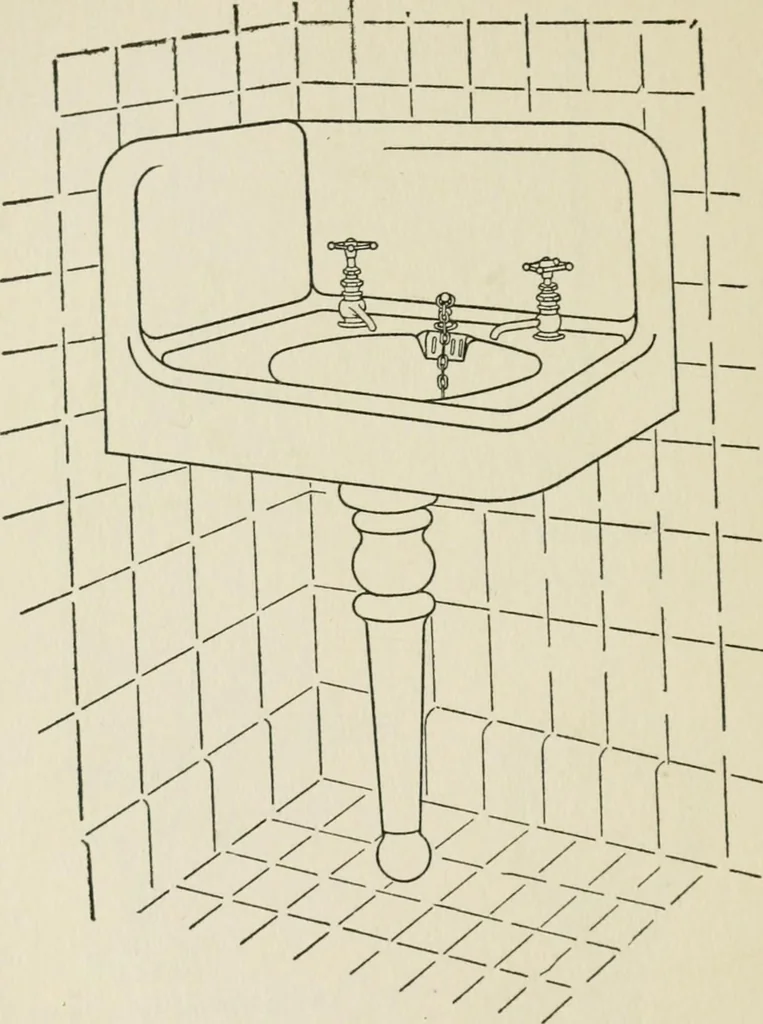

Fig. 14. Range Boiler Connect-ed to Gas Heater. Fig. 13. Stand for Range Boiler. 178 PLUMBING to pass up directly through the first floor par-tition Then, continuing upwards to a pointabout five feet above the fiist floor, we wUl place … Fig. 15. Lavatory on First Floor. a 2-inch tapped tee, for the vents from thekitchen sink and the wash trays; and then con-tinue on up to and through the roof, enlarging PLUMBING 179 the pipe to four inches just below the roof, andplacing a roof-flashing at the roof. There are a niunber of…
Architecture · Building
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
