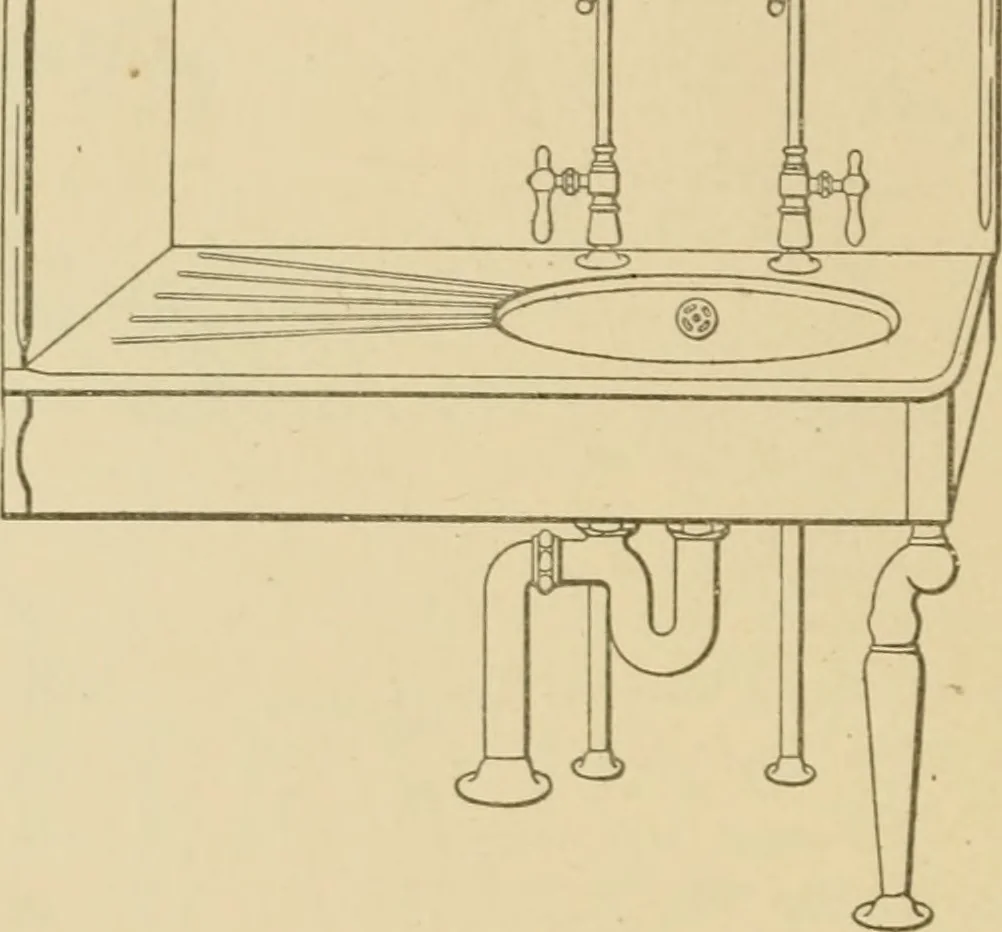

y 22 inches and about 12 inches deep.Generally it is furnished mounted on a trap standard, as in Fig. 34,which serves the double purpose of support and waste-trap. Care should be taken before installing a fixture placed upon atrap standard, to examine carefully whether the seal of the trap… … Fig. 32. Pantry Sink. 258 PLUMBIXG 35 water seal. In fact, it is desirable in connection with slop sinks, aswith all other fixtures, that the trap be of such a form as to showclearly, even after being set in place, the position of the various por-tions which constitute the trap and maintain the…
