Radford's cyclopedia of construction; carpentry, building and architecture. Based on the practical experience of a large staff of experts in actual constrcution work (1909)
Johnson, Alfred Sidney, 1860-, Radford, William A., 1865- · Chicago Radford Architectural Co · leaf 212

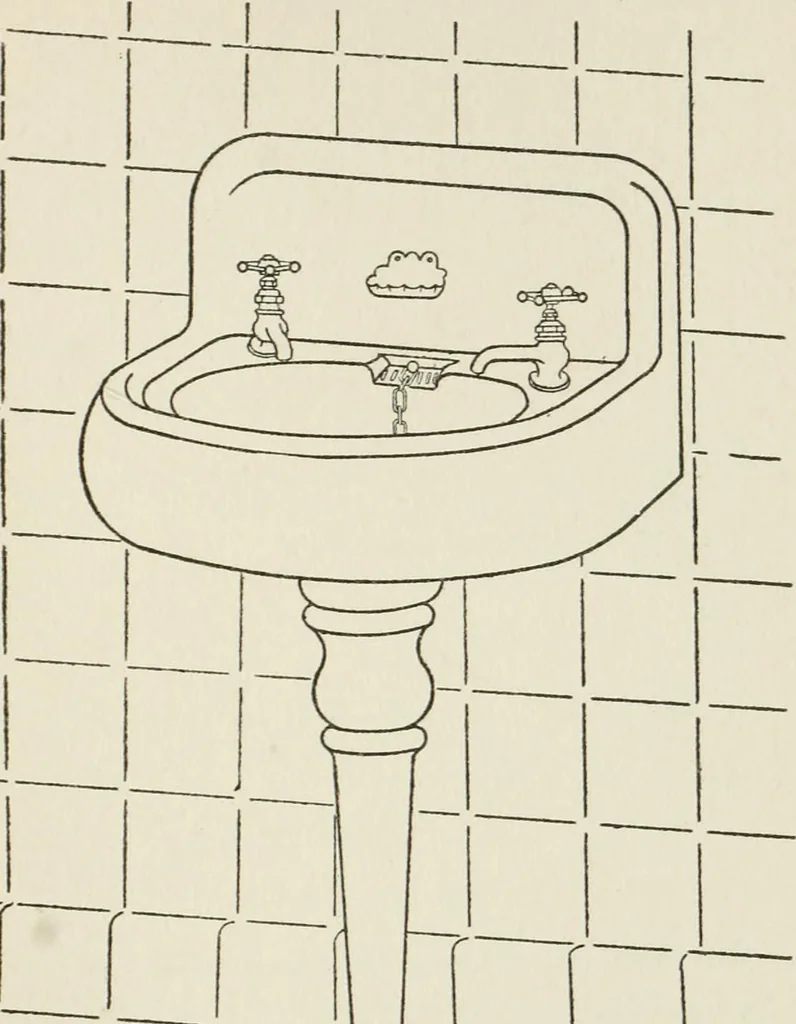

Fig. 15. Lavatory on First Floor. a 2-inch tapped tee, for the vents from thekitchen sink and the wash trays; and then con-tinue on up to and through the roof, enlarging PLUMBING 179 the pipe to four inches just below the roof, andplacing a roof-flashing at the roof. There are a niunber of… … -LIIJj I /H7T7 MT Fig, 16. Bathroom Lavatory. roof-flashings, any one of which may be used,provided it will prevent the water from leakingthrough and provided it has good wearing quali-ties. By enlarging the pipe to four inches where 180 PLUMBING it goes through the roof, the danger of the…
