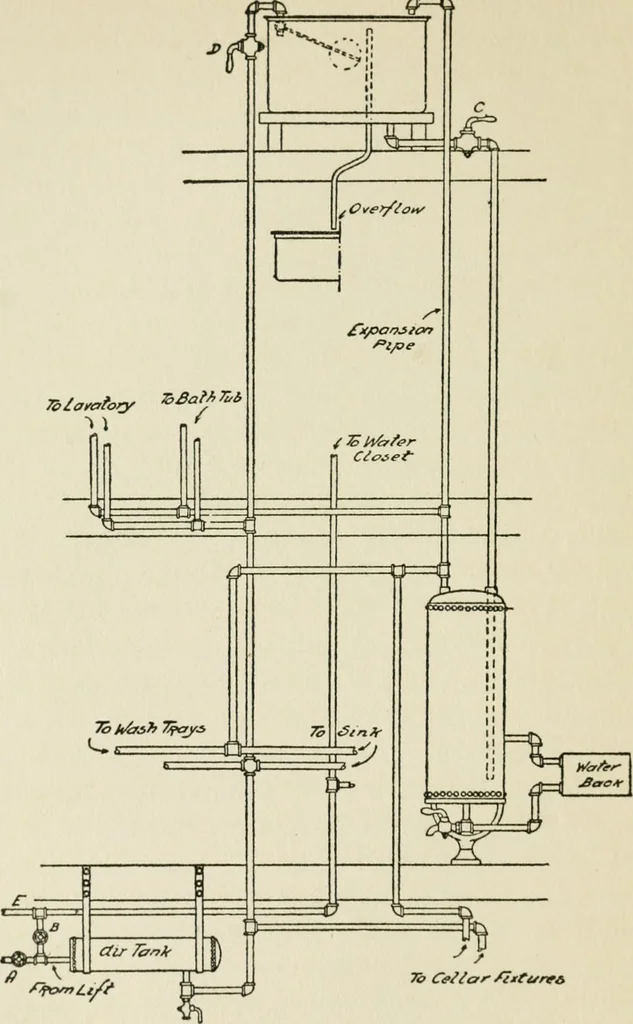

d with city water. On theriser from the water-lift, at the attic tank, isplaced a ball-cock such as is used in the tank ofthe water-closet, which maintains an establishedamount of water in the tank, and, when anywater is drawn oif, will automatically replacethe amoimt used. The sketch shows the… … ■^l-oyn^t/y 7b C^^^or /2*fure& ^^^<iit CbtJr Fig. 61. Hot- and Cold-Water Supply Piping System for s Residence. Water-closet and sink supplied directly with city water. PLUMBING 223 the valve B is closed; but in case the soft-watersupply gives out, closing valve A and openingvalve B will…
