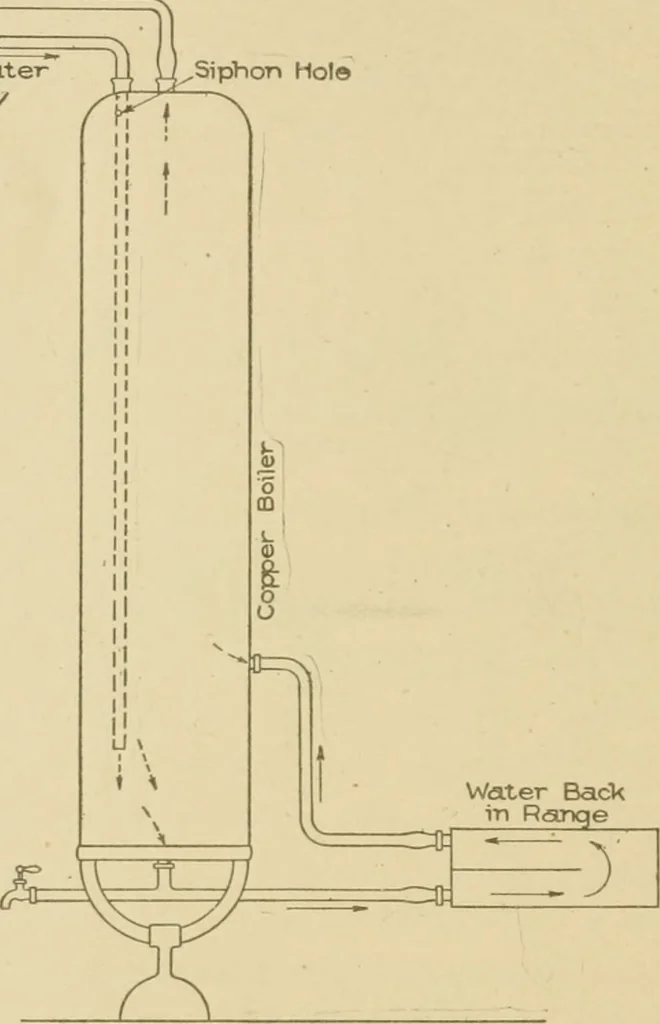

or steelshells. Take,for instance, a house with copper storage cylinder, with hot fire and inextremely hot water, as on wash-day; then, if the pressure is suddenlyreduced by opening a faucet or otherwise, and the temperature isfar above the boiling point of the water under the remaining… … Fig. 78. Vertical Type of Hot-Water Storage Cylinder Adaptedfor Kange Heating. 304 PLUMBING SI Rumbling noise is frequently heard in any type of reservoir.Water being heated throughout, or perhaps only at some points inthe stove, to above the boiling point corresponding to the pressure,steam…
