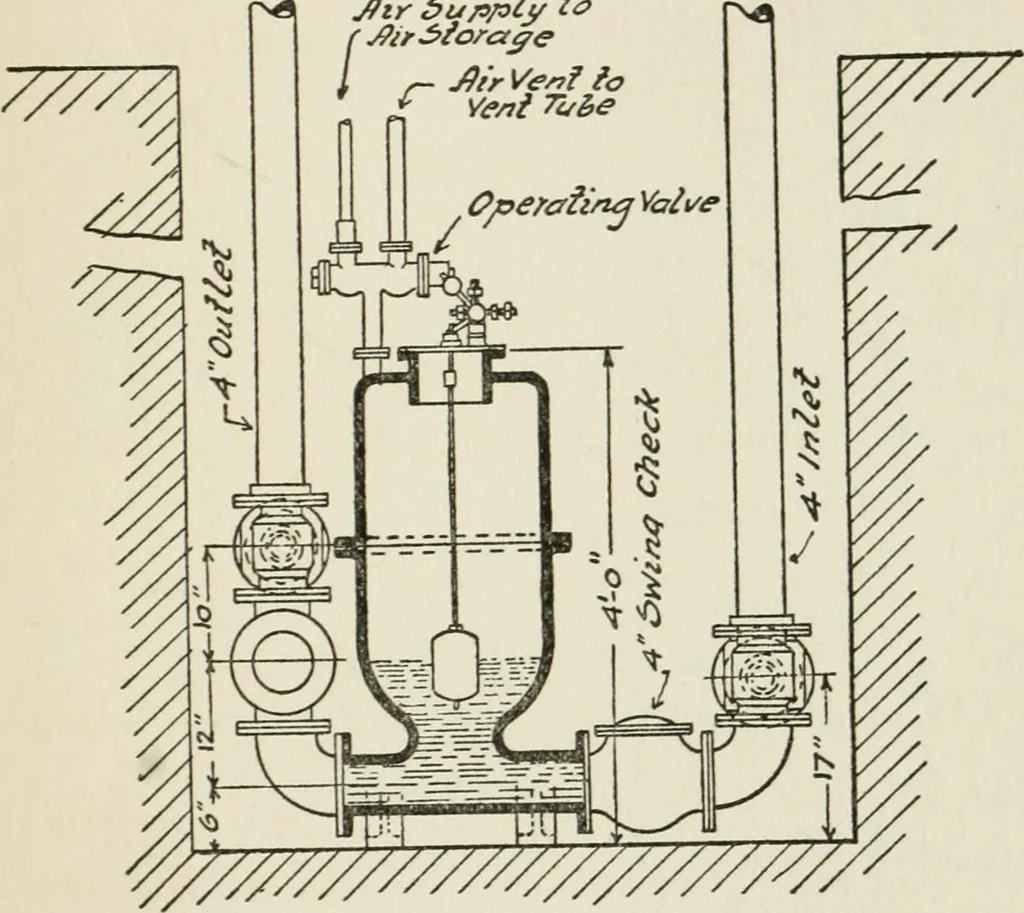

pounds. As is shown in Fig. 70, the float arrangementoperates on a central pole, and the inlet and out-let flows are through cylinders equipped with PLUMBING 349 the necessaiy flap and gate checks. The opera-tion of the valves and air-plnnger is simplifiedby the action of a two-way cock attached to… … Tig 70. Diagram Showing Float Arrangement, Sewage-EjectorPlant, Custom House, New York City. air. The new float arrangement insures a uni-form operation in the air-control, and alsoprepares for a complete discharge of the ejectorcontents. The two compressors for this planthave a capacity of 52…
